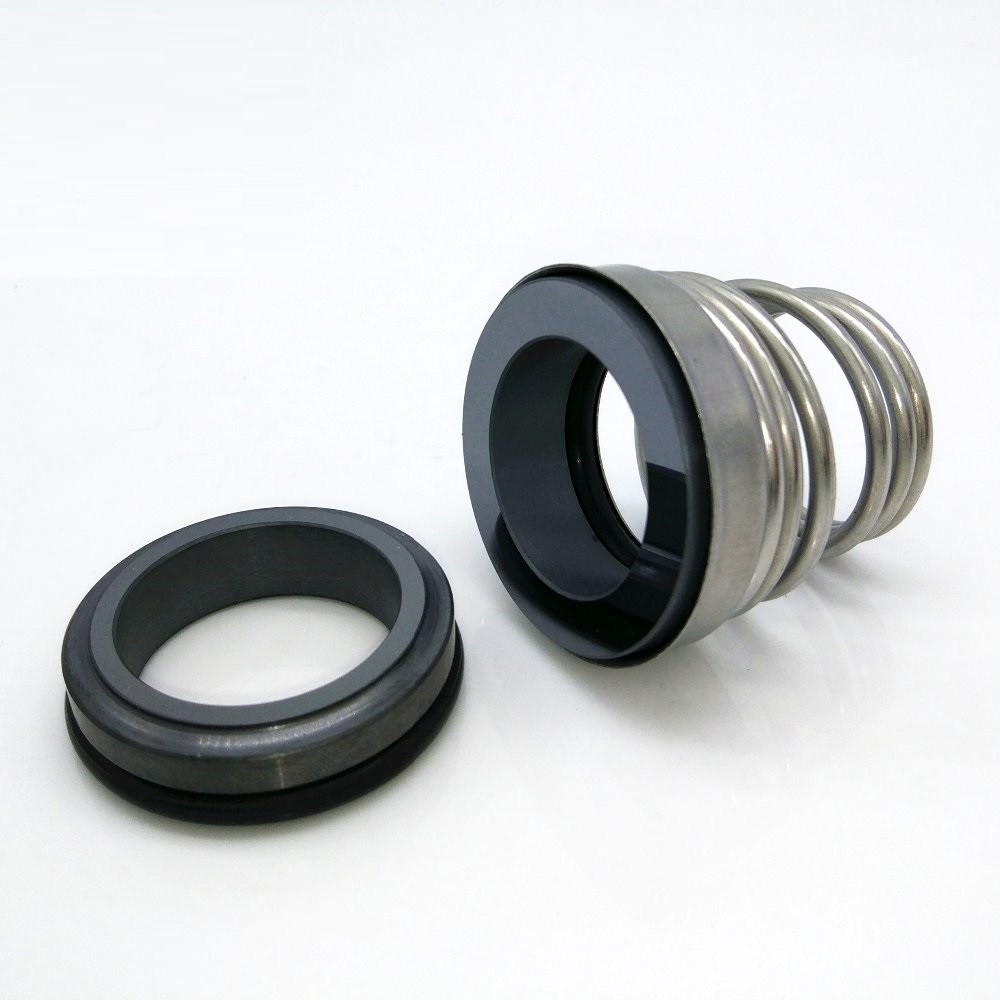

    Burgmann BT-FN BT O Ring Single Spring Mechanical Seal 155

    Ask Lasest Price
    Brand Name : JR
    Model Number : 155
    Certification : iso9001
    Price : Negotiated
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 10000000PC/Month
    Delivery Time : 10DAYS
    • Product Details
    • Company Profile

    Burgmann BT-FN BT O Ring Single Spring Mechanical Seal 155

    Burgmann BT-FN Single-Spring Seal BT O-Ring Single Spring Mechanical Seal 155


    Operational Conditions:


    1. Size:12mm-75mm
    2. Standard or Nonstandard:Standard
    3. Face:Carbon, SiC, TC
    4. Seat:Ceramic, SiC, TC
    5. Elastomer:NBR, EPDM, etc
    6. Metal Parts:SS304, SS316
    7. HS code:8484200090
    8. Application:water pump
    9. Type:mechanical seal
    10. Name:pump mechanical seal
    11. Keyword:sello mecanicos​
    12. Temperature: -20ºC to +150ºC
    13. Pressure: ≤1.0MPa
    14. Speed: ≤10m/s

    2. Materials:

    • Stationary Ring: Carbon, Silicon Carbide
    • Rotary Ring: Ceramic, Silicon Carbide
    • Secondary Seal: NBR, EPDM, FKM
    • Spring and Metal Parts: Steel
    • 3. Applications: Clean water, sewage water, oil and other moderately corrosive fluids

    Performance Capabilities

    Temperature
    -30℃ to 200℃, dependent on the elastomer
    Pressure
    Up to 10 bar
    Speed
    Up to 15 m/s
    End play/axial float allowance
    ±0.1mm
    Size
    12mm to 75mm
    Brand
    JR
    Face
    Ceramic, SiC, TC
    Seat
    Carbon, SiC, TC
    Elastomer
    NBR, EPDM, etc.
    Spring
    SS304, SS316
    Metal parts
    SS304, SS316
    Packing
    1.From 10mm to 20mm is packed in plastic sheets grouply and M box.
    2.From 21mm to 40mm is wrapped in plastic 3.paper individually then grouply in M box.
    3.Individual packing ,1 pc in 1 small box is available as well with cost of packing added.
    • The BT-FN combines a spring loaded ceramic seal face and the traditional pusher mechanical seals. The competitive price and the wide range of applications have made the BT-FN seal a success. The seal is produced with punched metal parts that allow an economical design.

      BT-FN mechanical seals are also the ideal solution for light chemicals media applications. To ensure the best reliable performance, we recommend a material combination of hard material sliding faces and proper elastomer O-Rings.

    Burgmann BT-FN BT O Ring Single Spring Mechanical Seal 155Burgmann BT-FN BT O Ring Single Spring Mechanical Seal 155Burgmann BT-FN BT O Ring Single Spring Mechanical Seal 155Burgmann BT-FN BT O Ring Single Spring Mechanical Seal 155Burgmann BT-FN BT O Ring Single Spring Mechanical Seal 155


    We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

    All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

    Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


    At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.


    Question 1: Are you a factory or a trade company?
    Answer: We are a factory and have our top sales for the trade service.


    Question 2: Can I try to get a SAMPLE before the order?
    Answer: Sure. You can ask for the samples. Usually they're free.


    Question 3: Where is your factory located? How can I visit there?
    Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


    Question 4: How does your factory do regarding quality control?
    Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.


    Question 5: How about the lead time?
    Answer: Within10-20 days after getting the prepayment.


    Question 6: How can we pay?
    Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.


    Question 7: If OEM available?
    Answer: Yes, we provide all of our products OEM /ODM service.


    Question 8: If I can buy pumps or pump parts from your company?
    Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
