Burgmann HJ92N Replace Wave Spring Mechanical Seal

Ask Lasest Price
Brand Name :	JR
Model Number :	H92N
Certification :	ISO9001
Price :	Negotiated
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	100000PC/Month
Delivery Time :	20-30DAYS

Add to Cart

Product Details
Company Profile

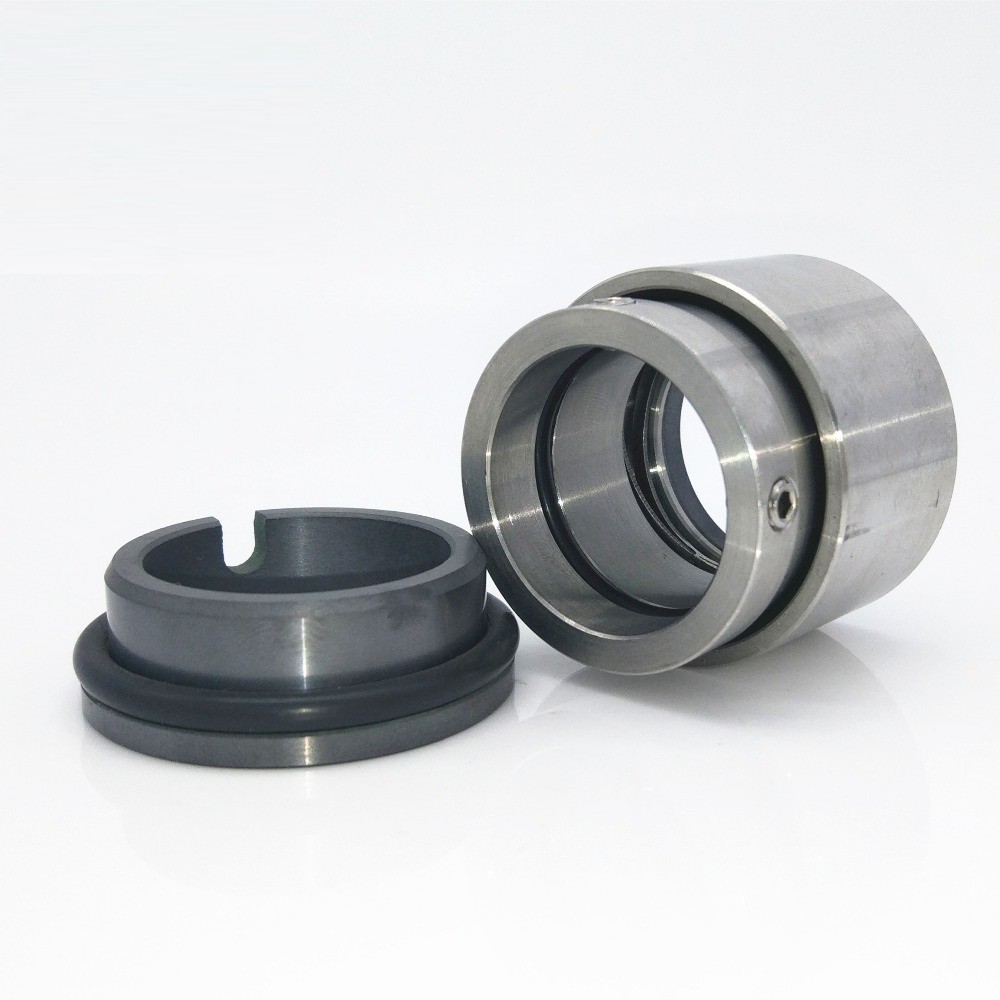

Burgmann HJ92N Replace Wave Spring Mechanical Seal

Wave Spring Mechanical Seal to Replace Burgmann HJ92N

Operational Conditions:

Type:Wave Spring Mechanical Seal,Suit for, Grundfos,Hilge, Ropac Propac 50 Pumps
Replacement:AES M010,Burgmann HJ92N,Roten EHS
Temperature:-20℃ to +180℃
Pressure:≤2.5Mpa
Speed:≤15m/s

Materials:

Seal face: Carbon graphite antimony impregnated (A),
Carbon graphite resin impregnated (B)
Seat G16: Silicon carbide (Q1)
Standards and approvals

Performance Capabilities

HJ92N mechanical seal
Operational Condtions	Size	Material
Temperature: -40℃ to 200℃ dependent on the elastomer	10mm to 80mm,	Face: Carbon, SiC, TC
Pressure:Up to 25 bar		Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s		Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm		Other Metal Part:SS304 SS316

Mechanical seals of the HJ92N series from EagleBurgmann are designed for media containing, solids or with high viscosity e.g. sugar, paper, sewage and waste water industry. The springs are product protected. There is no sticking or clogging making the design rugged and reliable. The seal is independent of direction of rotation.
2.it is equivalent to
Roten EHS seal
Hecker HN 435 seal
Ropac Propac 50 seal
3.Our seals can replace the original seals.
4.If it is not the one you need ,you can pass us your drawing ,material,shaft size for quotation.
5.Customized products and OEM is welcomed
6. 12 YEARS EXPERIENCE ,We provide Factory Price,High Quality ,Fast Delivery and Best Sevice.

HJ92N
Size/Mettic	d	D3	D6	D7	D8	L3	L4	L8	F	M
18	18	32	27	33	3	30.5	7	15	3	M4
20	20	34	29	35	3	30.5	7	15	3	M4
22	22	36	31	37	3	30.5	7	15	3	M4
24	24	38	33	39	3	33	7	15	3.5	M5
25	25	39	34	40	3	33	7	15	3.5	M5
28	28	42	37	43	3	35.5	7	15	3.5	M5
30	30	44	39	45	3	35.5	7	15	3.5	M5
32	32	47	42	48	3	35.5	7	15	3.5	M5
33	33	47	42	48	3	35.5	7	15	3.5	M5
35	35	49	44	50	3	35.5	7	15	3.5	M5
38	38	54	49	56	4	37	8	16	4	M5
40	40	56	51	58	4	37	8	16	4	M5
43	43	59	54	61	4	37	8	16	4	M5
45	45	61	56	63	4	37	8	16	4	M5
48	48	64	59	66	4	37	8	16	4	M5
50	50	66	62	70	4	38	9.5	17	4.5	M6
53	53	69	65	73	4	38	9.5	17	4.5	M6
55	55	71	67	75	4	38	9.5	17	4.5	M6
58	58	78	70	78	4	42	10.5	18	4.5	M6
60	60	80	72	80	4	42	10.5	18	4.5	M6
63	63	83	75	83	4	42	10.5	18	4.5	M6
65	65	85	77	85	4	42	10.5	18	4.5	M6
68	68	88	81	90	4	41.5	11	18.5	4.5	M6
70	70	90	83	92	4	48.5	11.5	19	5	M6
75	75	99	88	97	4	48.5	11.5	19	5.5	M8
80	80	104	95	105	4	48.5	11.5	19	5.5	M8
85	85	109	100	110	4	48.5	11.5	19	5.5	M8
90	90	114	105	115	4	52	13	20.5	5.5	M8
95	95	119	110	120	4	52	13	20.5	5.5	M8
100	100	124	115	125	4	52	13	20.5	5.5	M8

Burgmann HJ92N Replace Wave Spring Mechanical Seal

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.

At the meantime, we could manufacture seals according to your sample or drawing, and design as your request

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.

Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.

Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.

Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.

Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.

Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
