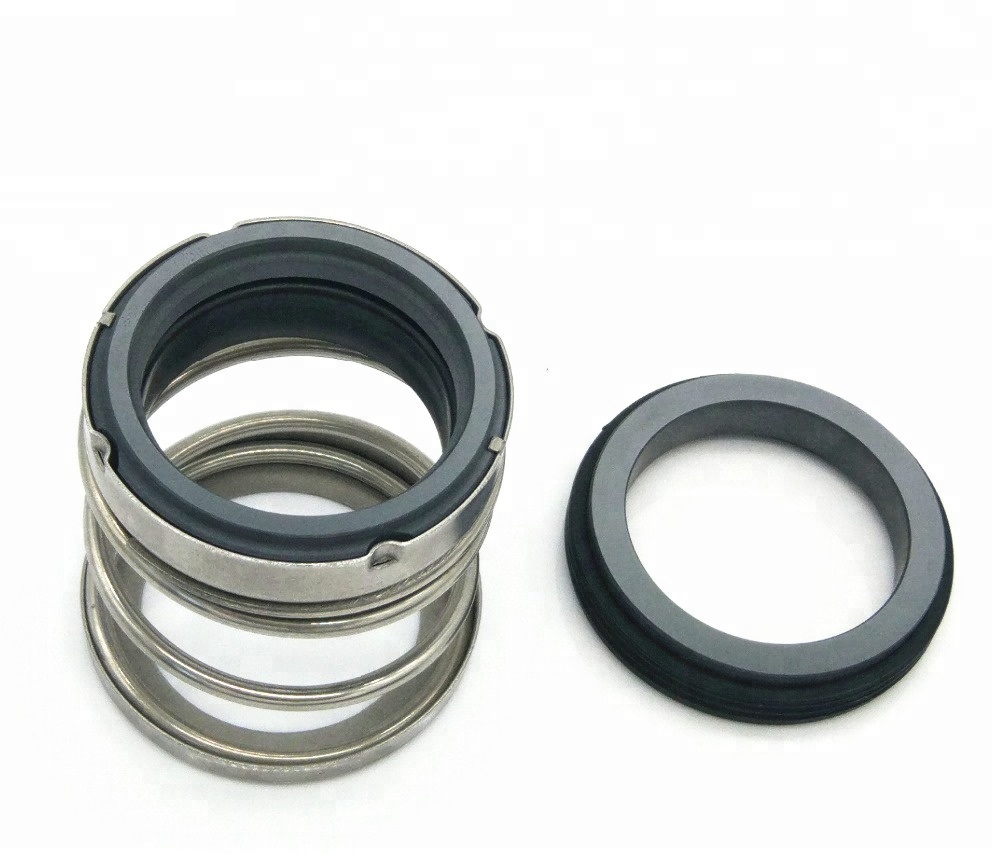

560A Water Elastomer Bellow Shaft Seals Single-Spring For Burgmann EA560 Mechanical Seal

Operations Conditions:

1. 1.Material: resin Carbon /Silicon Carbide /NBR/Stainless than Steel SS304
2. 2.Stationary : G60
3. 3. Operating Limits
4. Pressure: less than or equal to 1MPa
5. Speed:less than or equal to 12 m/s
6. Temperature(degree centigrade):from -30 to +200
7. Similar to Burgmann 560A, John crane Type 21

Material:

• EA560 Industrial Elastomer Bellows Seals Material
  Stationary Ring (Ceramic/SiC/TC)
  Rotary Ring (Plastic Carbon/Carbon/SiC/TC)
  Secondary Seal (NBR/EPDM/FKM)
  Spring & Other Parts (SS304/SS316)

Performance Capabilities

EA560 Industrial Elastomer Bellows Seals Design Features:
Single seal
Loosely inserted seal face provides self-adjusting capability
In-house manufactured sliding parts

EA560 Industrial Elastomer Bellows Seals Advantage:
The 560A is self-adjusting to shaft misalignments and deflections because of the loosely inserted seal face as well as the ability of the bellows to stretch and tighten. The length of the contact area of the bellows with the shaft is an optimum compromise between ease of assembly (less friction) and sufficient adhesive force for torque transmission. Additionally the seal fulfills very specific leakage requirements. Because the sliding parts are made in-house, a wide variety of special needs can be accommodated.
