Operational Conditions:

1. Style :Mechanical seal
2. Pressure :≤1Mpa
3. Speeds: ≤ 10m/ sec
4. Standarsd or Nostandard: Standard
5. Temperature: -20℃~180℃
6. Spring&Other parts: SUS304
7. Rotary ring SUS304/SIC/TC
8. Stationary ring :CARBON/SIC/TC
9. Secondary seal V

Materials:

• Stationary Ring: Ceramic, Silicon Carbide, TC
• Rotary Ring: Carbon, Silicon Carbide,TC
• Secondary Seal: NBR, EPDM, FKM, PTFE
• Spring and Metal Parts: Steel
• 3. Seat Type:
• 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids

Performance Capabilities:

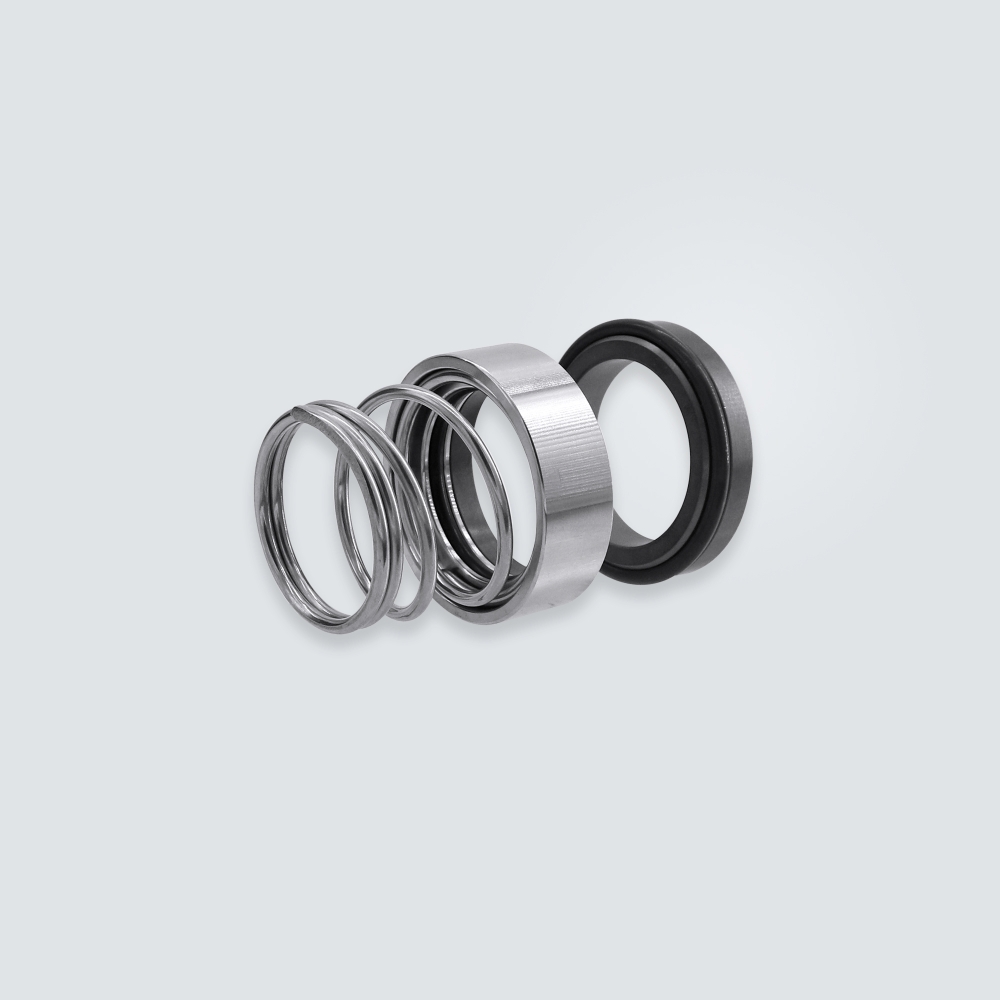

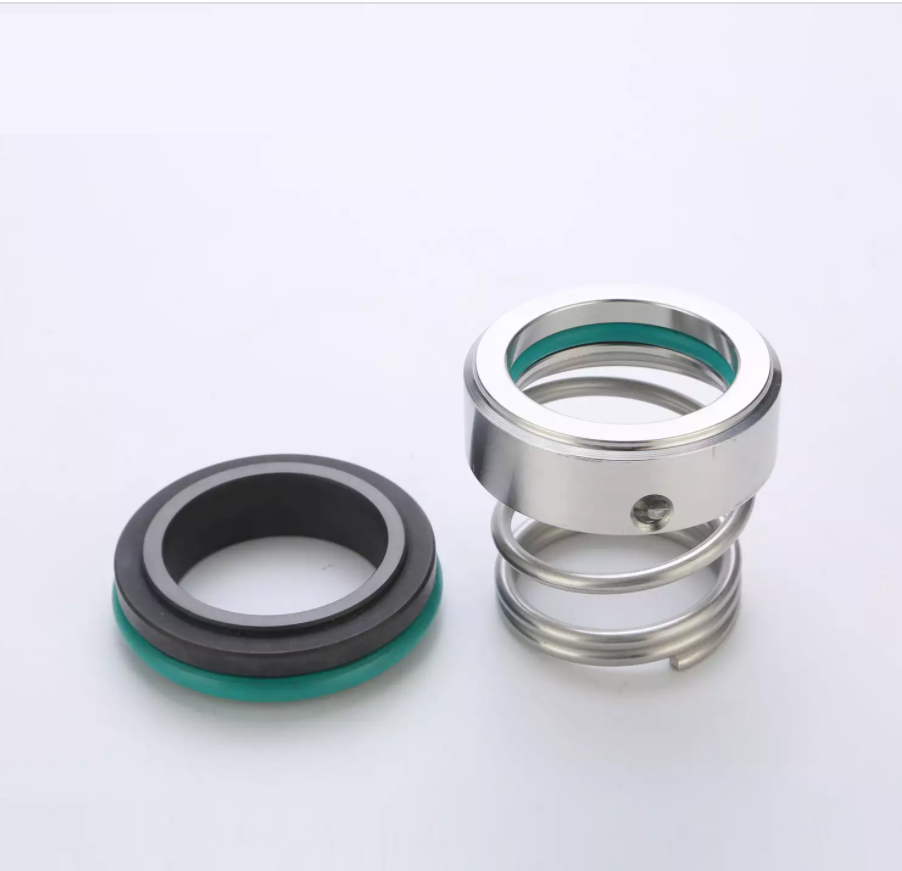

• Type 551 Single Coil Spring Mechanical Seal for Water Pumps, Temperature Control Pumps, Vacuum Pumps and Heat-exchange Oil Pumps

  Structural Features: single end, unbalanced, conical spring, dependent direction of rotation, spring transmission. This seal component has a simple structure, high compatibility and stable performance with great spring compensation.

  Industrial Standards: DIN24960, ISO3069, GB6556

  Scopes of Application: widely used in water pumps, temperature control pumps, vacuum pumps and heat-exchange oil pumps. Mainly used in leathering, waste water treatment, plastic, and food machinery industry. This product can be an alternative to similar products such as John Crane Type 551 or EagleBurgmann BT-RN.

Hefei supseals international trade Co., Ltd is engaged in the design, manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, cartridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Agitator Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal, Seal Spares, Horizontal Centrifugal Pump, PTFE Bellow Seal, Single Coil Spring Seal and many more. In addition to these we are also offering a wide range of Seal Components and Seals, which is extensively used in distilleries industries, textile industries and for various water applications. These are available with various material finishes such as carbon, TC ceramic, silicon carbide.

Hefei supseals international trade Co., Ltd is one of the leading manufacturer of the mechanical seals for various pumps, compressors, agitators, reactors and mixers etc. We design & manufacture mechanical seals according to the international standards and also the products are designed using computerised equipments to avoid the errors.

Hefei supseals international trade Co., Ltd is committed to continious improvement of its products and services to achieve customer′s satisfaction.

Hefei supseals international trade Co., Ltd has been catering services to Chemical, Petrochemical, Agrochemical, Fertilizers, Pharmaceuticals Industries and many other industries.

We believe that " The Secret of Success is Consistency of Purpose"

Factory

Certifications

Workshop

Quality:

Warehouse

Team Work:

We work together as a TEAM, encourages and support each other to achieve common and individual goals, and also respect the individual differences.

Performance:

Based on our customers feedback we are able to design customise & manufacture mechanical seals which performed equally well to the other expensive mechanical seals brand.

Product Range:

We have the vide range of products in mechanical seals which are highly efficient for all types of Centrifugal pumps, Compressors, Agitators, Reactors and Mixers etc. We also have the Equivalent Range of complete mechanical seals and spares for the various design like John Crane, EagleBurgmann, Flowserve, Flexi Box and Leakproof etc.

Services:

We provide service to our customers by taking necessary physical dimension of the equipments at the customer′s site and we also provide installation and running trial service. We also maintain inventory for mechanical seals & spares for various customers manufacture at our factory to meet the customers requirenment on time. We also undertake the repairs and maintainance contracts of any third party mechanical seals.
