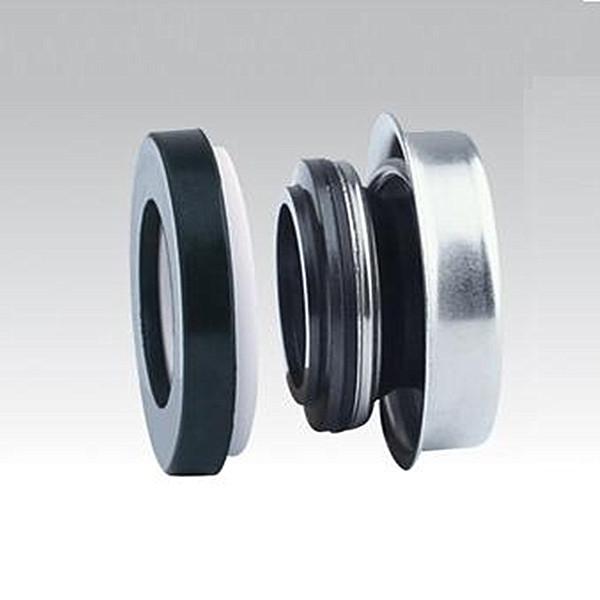

    Carb / Cer / Nitrile Elastomer Bellows Mechanical Seal Type 70

    Ask Lasest Price
    Brand Name : JR
    Model Number : 70
    Certification : iso9001
    Price : Negotiated
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 10000000PC/Month
    Delivery Time : 10DAYS
    • Product Details
    • Company Profile

    Carb / Cer / Nitrile Elastomer Bellows Mechanical Seal Type 70

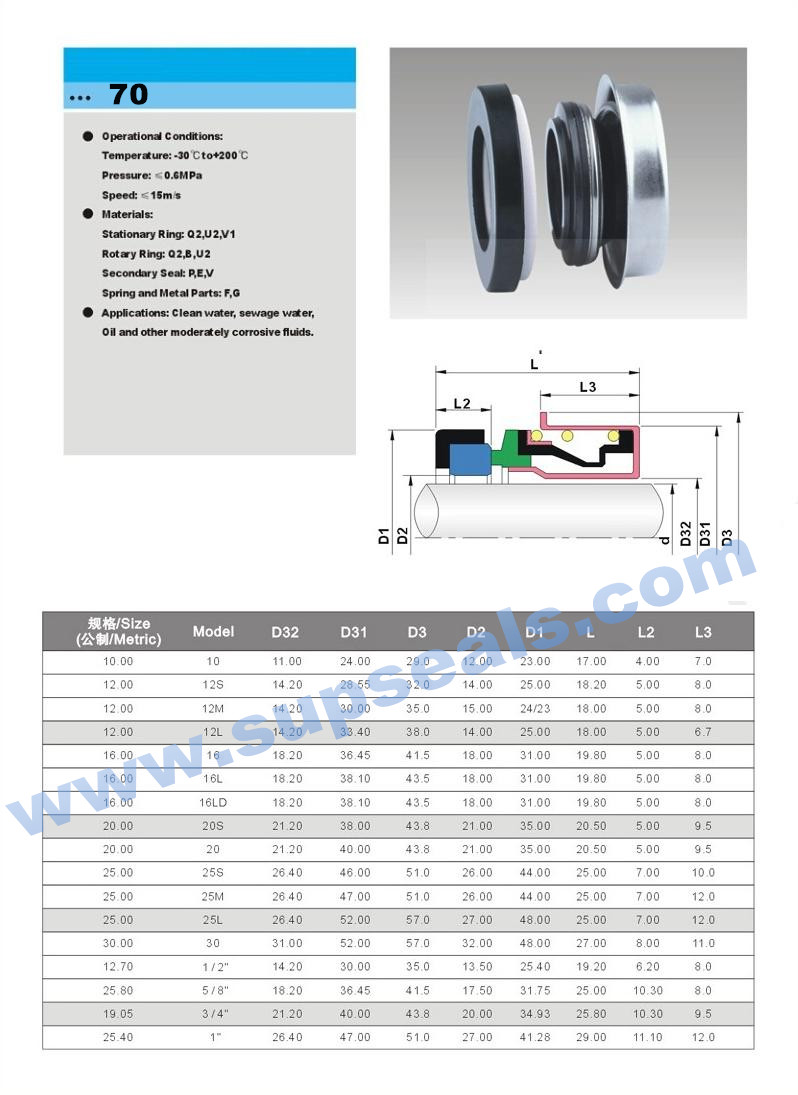

    Type 70 Mechanical Pump Seal Carb/Cer/Nitrile Elastomer bellows Mechanical seal


    Operations Conditions:

    1. Type 70 Water Pump Mechanical Seals
    2. Temperature:-30ºC to +200ºC
    3. Pressure:≤0.6bar
    4. Speed:≤15m/s

    Materials:

    • Stationary Ring:Silicon Carbide Reaction Bonded
    • Rotary Ring:,Silicon Carbide Reaction Bonded
    • Secondary Seal:Fluorocarbon Rubber(FKM)
    • Spring and Metal Parts:Stainless Steel
    • Seat Types:
    • Applications:Clean Water

    Performance Capabilities:


    Temperature
    -30℃ to 200℃, dependent on the elastomer
    Pressure
    Up to 0.6MPA
    Speed
    Up to 15m/s
    End play/axial float allowance
    ±0.1mm
    Size
    10-25.4MM
    Brand
    JR
    Face
    Carbon, SiC, TC
    Seat
    Ceramic, SiC, TC
    Elastomer
    NBR, EPDM, FKM etc.
    Spring
    SS304, SS316
    Metal parts
    SS304, SS316
    PackingIndividual packing ,1 pc in 1 small box is available as well
    • 1. it is equivalent to Type 70
    • 2. Our seals can replace the original seals.
    • 3. Stationary based, unitised elastomer bellows Mechanical Seal, utilised in small shaft diameter applications.
    • Compact, unitised design, provides excellent flexibility in accommodating shaft misalignment and with quality seal face materials to extend Mechanical Seal performance and life.
    • The adequate shaft clearance enables one size to be used on a number of shaft sizes, whilst being stationary based increases the Mechanical Seal’s bi-directional rotational speed capabilities.

    We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,


    All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

    Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


    At the meantime, we could manufacture seals according to your sample or drawing, and design as your request


    Question 1: Are you a factory or a trade company?
    Answer: We are a factory and have our top sales for the trade service.

    Question 2: Can I try to get a SAMPLE before the order?
    Answer: Sure. You can ask for the samples. Usually they're free.


    Question 3: Where is your factory located? How can I visit there?
    Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


    Question 4: How does your factory do regarding quality control?
    Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.


    Question 5: How about the lead time?
    Answer: Within10-20 days after getting the prepayment.


    Question 6: How can we pay?
    Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.


    Question 7: If OEM available?
    Answer: Yes, we provide all of our products OEM /ODM service.


    Question 8: If I can buy pumps or pump parts from your company?
    Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
