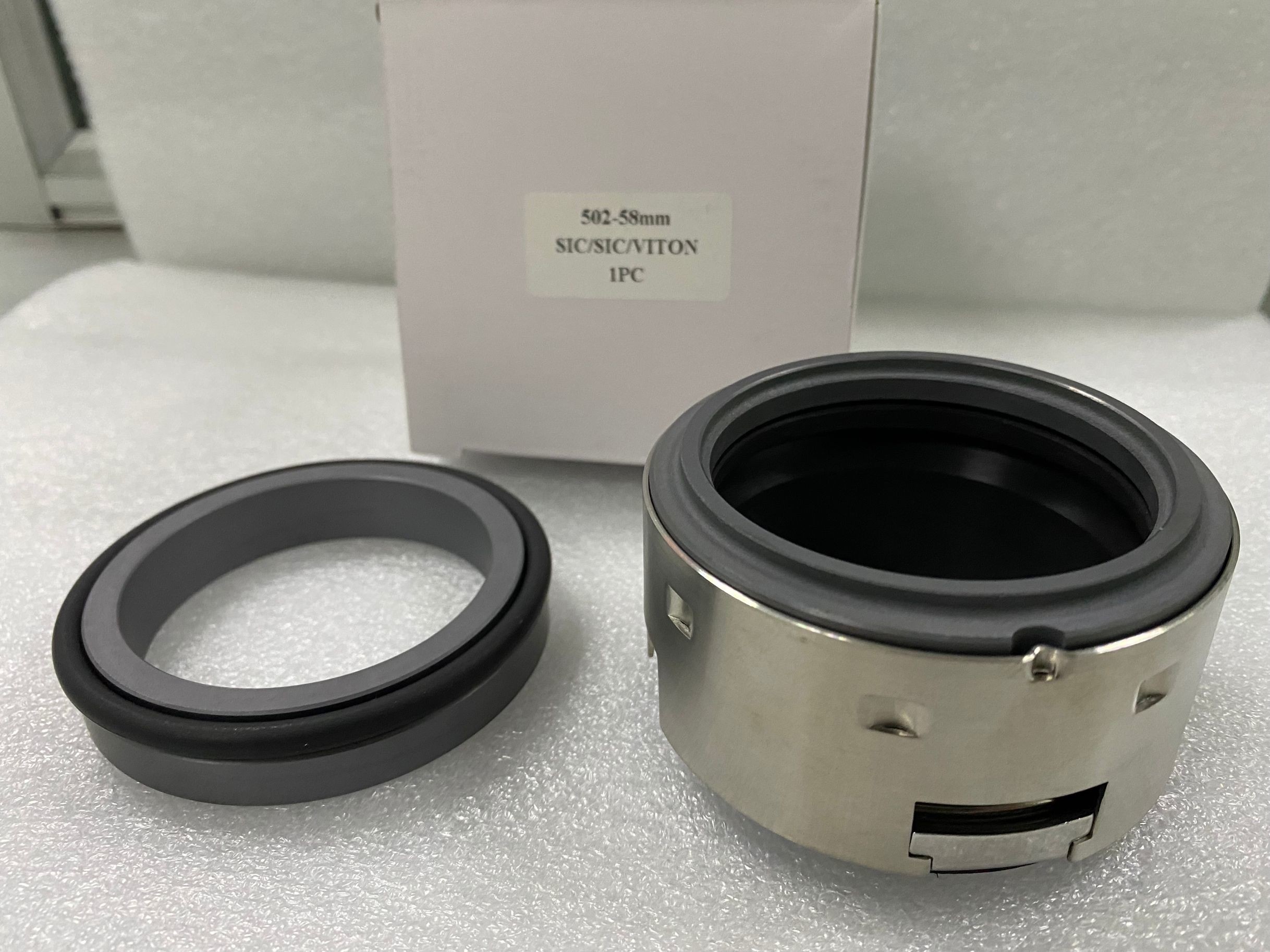

    John Crane Type 502 Mechanical Shaft Seal Standard Size 58mm Sic Sic FKM

    Ask Lasest Price
    Brand Name : JR
    Model Number : 502
    Certification : ISO9001
    Price : Negotiated
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100000PC/Month
    Delivery Time : 20-30DAYS
    • Product Details
    • Company Profile

    John Crane Type 502 Mechanical Shaft Seal Standard Size 58mm Sic Sic FKM

    John Crane Type 502 Mechanical Shaft Seal Standard Size With 58mm Sic Sic FKM

    Operational Conditions:

    1. Structure Description:
      Equivalent to AES B07, John Crane Type 502 mechanical seal
      Rubber bellows design
      Operating Limits:
      Temperature:-20---120℃
      Speed: 15m/s
      Pressure: 25bar
      Standard size: 14mm--100mm

    Materials:

    • Rotary Face: Carbon / SIC.
    • Stationary Seat: Ceramic / SIC.
    • Bellows: NBR / EPDM / FKM.
    • Spring: SS304 / SS316.
    • Metal Parts: SS304 / SS316.


    Performance Capabilities


    john crane 502mechanical seal rotary seal mixer seal
    Operational Condtions
    Size
    Material
    Temperature:
    -40℃ to 200℃ dependent on the elastomer
    14mm to 100mm
    Face: Carbon, SiC, TC
    Pressure:Up to 25 bar
    Seat: Ceramic, SiC, TC
    Speed:Up to 20 m/s
    Elastomer:NBR, EPDM, FKM
    End Play /axial float Allowance:±1.0mm
    Other Metal Parts : SS304, SS316
    • 1.Material: resin carbon /Silicon Carbide /FKM /Stainless than Steel SS316
    • 2.Stationary :BO
    • 3.Operating Limits:
    • Pressure: less than or equal to 4MPa
    • Speed: less than or equal to 13m/s
    • Temperature(degree centigrade): from -30 to +200
    • 4.NOTE :The standard seat for the TS 502 seal is the BO seat (DIN24960). Alternative seats can also be used, such as the BP and BC seats.
    • 5.to replace John crane 502 shaft size 50mm,AESSEAL B07S shaft size 50mm ,STERLING seal 524S shaft size 50mm
    • 6.Our cetifications :ISO9001:2008,ISO/TS16949:2009,ISO 14001:2004,SGS,ROSH,REACH,FDA,WARS,NSF and so on.

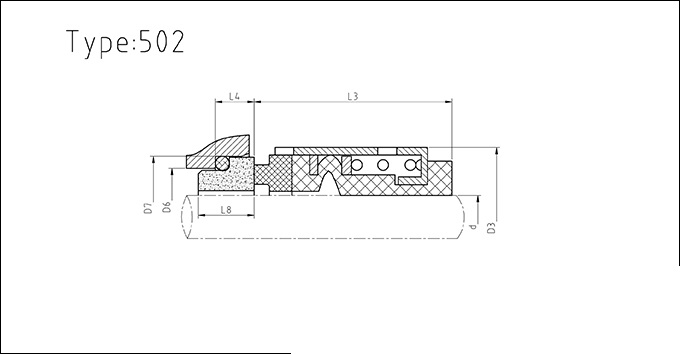

    502 Dimensions(mm)
    dD3D6D7L3L4L8
    1424212523.012.012.8
    1626232723.012.012.8
    1832273324.013.514.5
    2034293524.013.514.5
    2236313724.013.514.5
    2438333926.713.314.3
    2539344027.013.014.0
    2842374330.012.513.5
    3044394530.512.013.0
    3246424830.512.013.0
    3347424830.512.013.0
    3549445030.512.013.0
    3854495632.013.014.0
    4056515832.013.014.0
    4359546132.013.014.0
    4561566332.013.014.0
    4864596632.013.014.0
    5066627034.013.514.5
    5369657334.013.514.5
    5571677534.013.514.5
    5878707839.013.514.2
    6080728039.013.514.2
    6383758339.013.514.2
    6585778539.013.514.2
    6888819039.013.514.2
    7089839245.514.515.2
    7596889745.514.515.2
    801049510545.015.015.7
    8510810011045.015.015.7
    9011410511550.015.015.7
    9511811012050.015.015.7
    10012411512550.015.015.7

    John Crane Type 502 Mechanical Shaft Seal Standard Size 58mm Sic Sic FKMJohn Crane Type 502 Mechanical Shaft Seal Standard Size 58mm Sic Sic FKMJohn Crane Type 502 Mechanical Shaft Seal Standard Size 58mm Sic Sic FKM

    We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

    All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

    Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


    At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.


    Question 1: Are you a factory or a trade company?
    Answer: We are a factory and have our top sales for the trade service.


    Question 2: Can I try to get a SAMPLE before the order?
    Answer: Sure. You can ask for the samples. Usually they're free.


    Question 3: Where is your factory located? How can I visit there?
    Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


    Question 4: How does your factory do regarding quality control?
    Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.


    Question 5: How about the lead time?
    Answer: Within10-20 days after getting the prepayment.


    Question 6: How can we pay?
    Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.


    Question 7: If OEM available?
    Answer: Yes, we provide all of our products OEM /ODM service.


    Question 8: If I can buy pumps or pump parts from your company?
    Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
