    Vulcan 1680 Wave Spring Seal Suit For Alfa LKPL / NMOG And SRU Lobe Pumps

    Ask Lasest Price
    Brand Name : JR
    Model Number : Vulcan 1680
    Certification : ISO9001
    Price : Negotiated
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100000PC/Month
    Delivery Time : 20-30DAYS
    • Product Details
    • Company Profile

    Vulcan 1680 Wave Spring Seal Suit For Alfa LKPL / NMOG And SRU Lobe Pumps

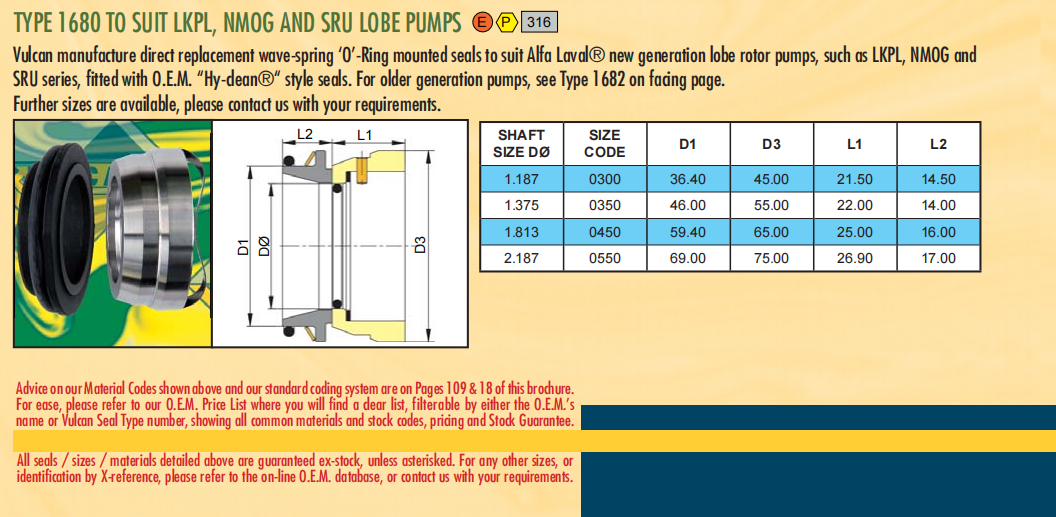

    Vulcan 1680 Wave Spring Seal Suit for Alfa LKPL,NMOG and SRU Lobe Pumps

    Operational Conditions:

    1. Structure Description:
      Equivalent to s
      uit for Alfa LKPL,NMOG and SRU Lobe Pumps
      .
      Rubber bellows design
      Operating Limits:
      Temperature:-20---120℃
      Speed: 15m/s
      Pressure: 25bar
      Standard size: 14mm--100mm

    Materials:

    • Rotary Face: Carbon / SIC.
    • Stationary Seat: Ceramic / SIC.
    • Bellows: NBR / EPDM / FKM.
    • Spring: SS304 / SS316.
    • Metal Parts: SS304 / SS316.

    Performance Capabilities


    mechanical seal rotary seal mixer seal
    Operational Condtions
    Size
    Material
    Temperature:
    -40℃ to 200℃ dependent on the elastomer
    d=30-55mm
    Face: Carbon, SiC, TC
    Pressure:Up to 25 bar
    Seat: Ceramic, SiC, TC
    Speed:Up to 20 m/s
    Elastomer:NBR, EPDM, FKM
    End Play /axial float Allowance:±1.0mm
    Other Metal Parts : SS304, SS316
    • Vulcan 1680 suit for Alfa LKPL,NMOG and SRU Lobe Pumps

    Vulcan 1680 Wave Spring Seal Suit For Alfa LKPL / NMOG And SRU Lobe PumpsVulcan 1680 Wave Spring Seal Suit For Alfa LKPL / NMOG And SRU Lobe PumpsVulcan 1680 Wave Spring Seal Suit For Alfa LKPL / NMOG And SRU Lobe Pumps


    We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

    All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

    Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


    At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
