    Mechanical Seal Fristam Pump Seal Aesseal T01F 18026 Type 2201/1

    Ask Lasest Price
    Brand Name : JR
    Model Number : Fristam Pump Seal Aesseal T01F
    Certification : iso9001
    Price : Negotiated
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000PC/Month
    Delivery Time : 20-30DAYS
    • Product Details
    • Company Profile

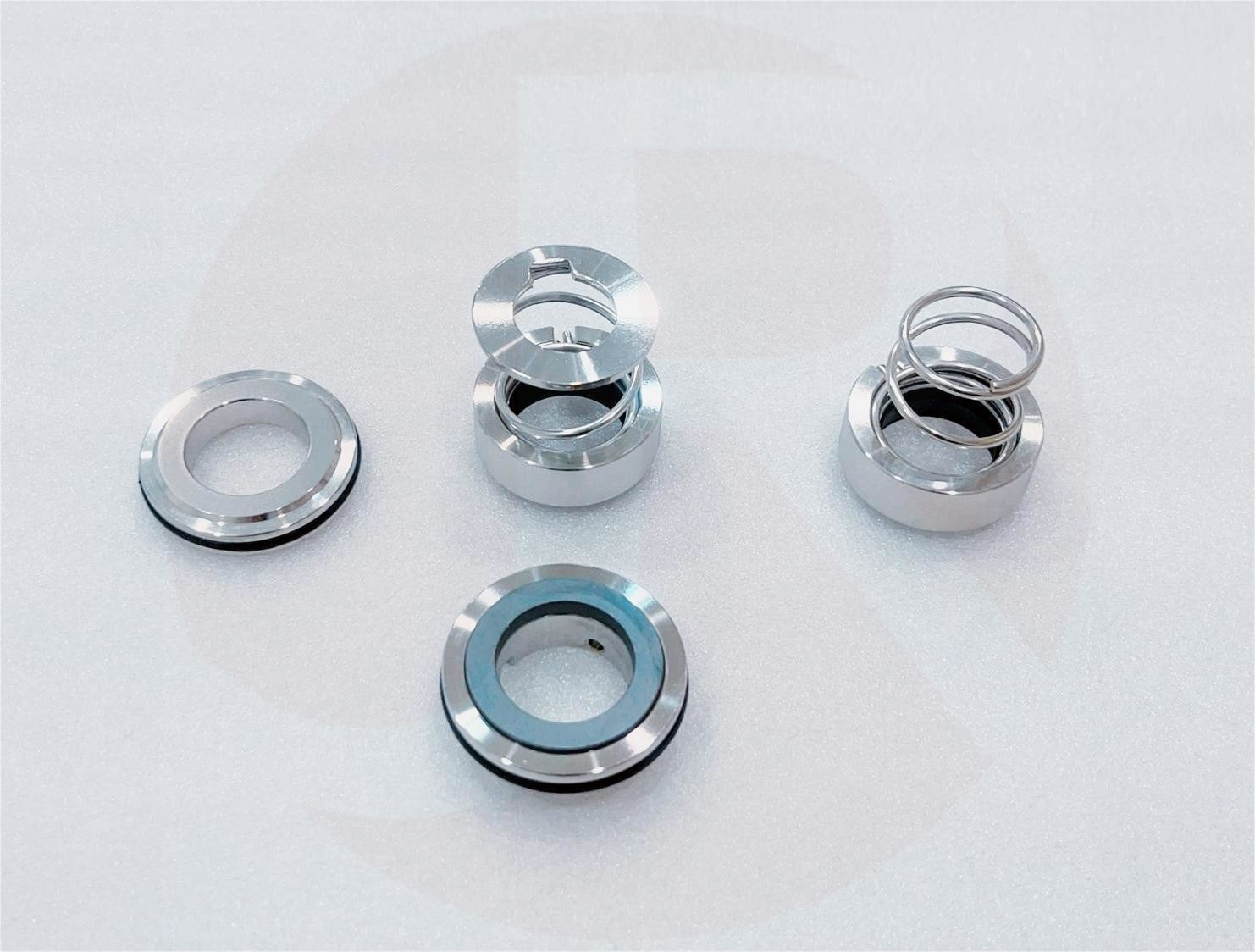

    Mechanical Seal Fristam Pump Seal Aesseal T01F 18026 Type 2201/1

    Mechanical Seal Fristam Pump Seal Aesseal T01F Seal 18026 Type 2201/1 Seal

    Description:

    Operational Conditions:

    1. Type:Suit for FRISTAM Pumps
    2. Replacement:AES T01F, Lidering FR-G-22
    3. Temperature:-20℃ to +180℃
    4. Pressure:≤1.0Mpa
    5. Speed:≤15m/s
    6. Material:B,A1,Q1,Q2,U2,P,E,N,V,F,G

    Materials:

    • Rotary Ring: Carbon
    • Stationary Ring: Stainless Steel/SiC/TC
    • Elastomers: NBR/EPDM/FKM
    • Springs: SS304
    • Metal Parts: SS304/SS316
    • Mediums: oil, water, sewage, food and beverage.

    Performance Capabilities


    Temperature
    -30℃ to 200℃, dependent on the elastomer
    Pressure
    Up to 10 bar
    Speed
    Up to 15 m/s
    End play/axial float allowance
    ±0.1mm
    Size
    22mm 30mm 35mm
    Brand
    JR
    Face
    Carbon, SiC
    Seat
    SUS304,SUS316, SIC, TC
    Elastomer
    NBR, EPDM, FKM etc.
    Spring
    SS304, SS316
    Metal parts
    SS304, SS316
    Idividual Packing
    Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

    they are as replacements for Fristam pump seals, for Food, Dairy and Beverage Processing.
    Equivalent to:
    Vulcan seal type 2201/1,
    Vulcan seal type 2201/2,
    Vulcan seal type 2208/12,
    Vulcan seal type 2208/12B,
    Vulcan seal type 2206/61,
    Vulcan seal type 2205/6,
    Vulcan seal type 2209/1,
    Vulcan seal type 2209/2,
    Vulcan seal type 2209/3
    Aesseal T01F


    A wide range of components and complete Seal Sets, offered in FDA specified complaint materials, to directly replace the O.E.M. Seal components. Further special designs to suit specific pumps models FPX, FT, FK, FKL50, FL, FLF.

    We also have replacement seals for other major sanitary pumps such as APV, Fristam, Lowara, Inoxpa, etc.



    Mechanical Seal Fristam Pump Seal Aesseal T01F 18026 Type 2201/1Mechanical Seal Fristam Pump Seal Aesseal T01F 18026 Type 2201/1Mechanical Seal Fristam Pump Seal Aesseal T01F 18026 Type 2201/1

    We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,


    All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

    Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


    At the meantime, we could manufacture seals according to your sample or drawing, and design as your request


    Question 1: Are you a factory or a trade company?
    Answer: We are a factory and have our top sales for the trade service.

    Question 2: Can I try to get a SAMPLE before the order?
    Answer: Sure. You can ask for the samples. Usually they're free.


    Question 3: Where is your factory located? How can I visit there?
    Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


    Question 4: How does your factory do regarding quality control?
    Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.


    Question 5: How about the lead time?
    Answer: Within10-20 days after getting the prepayment.


    Question 6: How can we pay?
    Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.


    Question 7: If OEM available?
    Answer: Yes, we provide all of our products OEM /ODM service.


    Question 8: If I can buy pumps or pump parts from your company?
    Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on

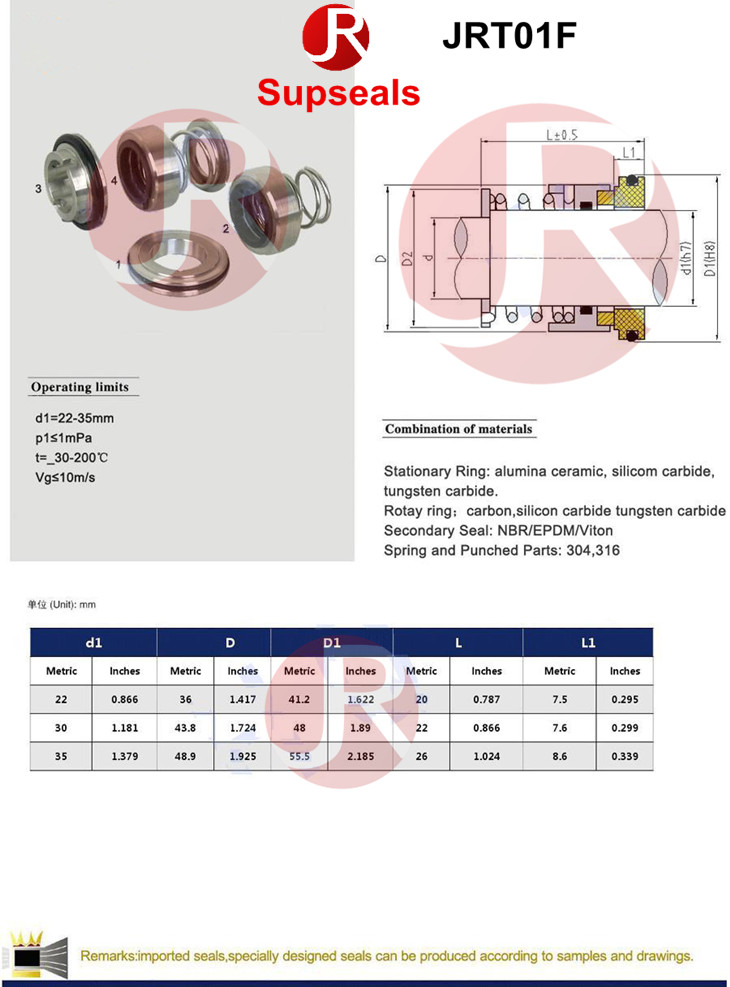

    d

    (mm)

    d0
    D
    L1
    L2
    L3
    22
    18
    50
    22
    22.5
    20
