    Mechanical Type 1 Elastomer Bellows Seal Single Spring

    Ask Lasest Price
    Brand Name : JR
    Model Number : Type 1
    Certification : ISO9001
    Price : Negotiated
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100000PC/Month
    Delivery Time : 20-30DAYS
    • Product Details
    • Company Profile

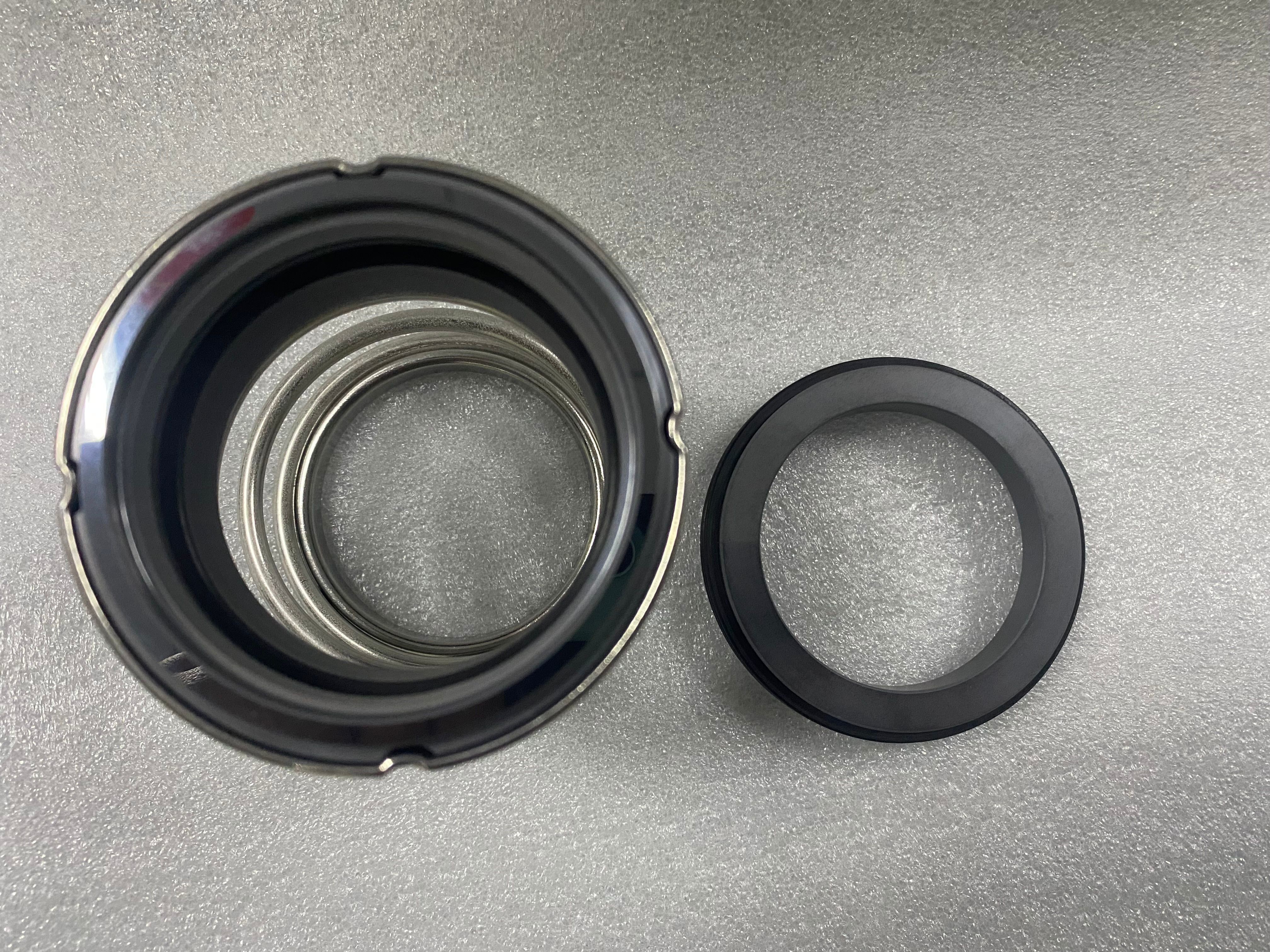

    Mechanical Type 1 Elastomer Bellows Seal Single Spring

    Mechanical Seal Type 1 Elastomer Bellows Seal Single-Spring Seal Manufacture

    Operational Conditions:

    1. Reliable transmission due to special design in the drive band and drive notches.
    2. Special balancing in the elastomer bellows. design,avaliable in high-pressure application
    3. Temperature: -20ºC to +120ºC
    4. Pressure: ≤1.4MPa
    5. Speed: ≤15m/s

    Materials:

    • ROTARY FACES: Carbon Graphite, Silicon Carbide, Tungsten Carbide
    • STATIONARY SEATS: Ceramic, Silicon Carbide, Tungsten Carbide, Stainless Steel
    • BELLOWS: Buna, FKM, EPDM, Aflas, Neoprene
    • METAL PARTS: 304 SS standard, 316 SS option available


    Performance Capabilities

    Temperature
    -30℃ to 200℃, dependent on the elastomer
    Pressure
    Up to 14 bar
    Speed
    Up to 13 m/s
    End play/axial float allowance
    ±0.1mm
    Size
    0.5" to 4"
    Brand
    JR
    Face
    Carbon, SiC, TC
    Seat
    Ceramic, SiC, TC
    Elastomer
    NBR, EPDM, FKM etc.
    Spring
    SS304, SS316
    Metal parts
    SS304, SS316
    Idividual Packing
    Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

    We can make all kinds of mechanical seals of rubber bellow seals, including the copy of Burgm, John Crane TYPE1,Flowserve 51 seal,US Seal E seal,Vulcan A5 seal

    pplications: All types of rotating equipment, pumps, mixers, agitators and compressors. To suit mediums such as oil, water, most general and light chemical duties

    Mechanical Type 1 Elastomer Bellows Seal Single SpringMechanical Type 1 Elastomer Bellows Seal Single SpringMechanical Type 1 Elastomer Bellows Seal Single SpringMechanical Type 1 Elastomer Bellows Seal Single Spring

    We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

    All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

    Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


    At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.


    Question 1: Are you a factory or a trade company?
    Answer: We are a factory and have our top sales for the trade service.


    Question 2: Can I try to get a SAMPLE before the order?
    Answer: Sure. You can ask for the samples. Usually they're free.


    Question 3: Where is your factory located? How can I visit there?
    Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


    Question 4: How does your factory do regarding quality control?
    Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.


    Question 5: How about the lead time?
    Answer: Within10-20 days after getting the prepayment.


    Question 6: How can we pay?
    Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.


    Question 7: If OEM available?
    Answer: Yes, we provide all of our products OEM /ODM service.


    Question 8: If I can buy pumps or pump parts from your company?
    Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
