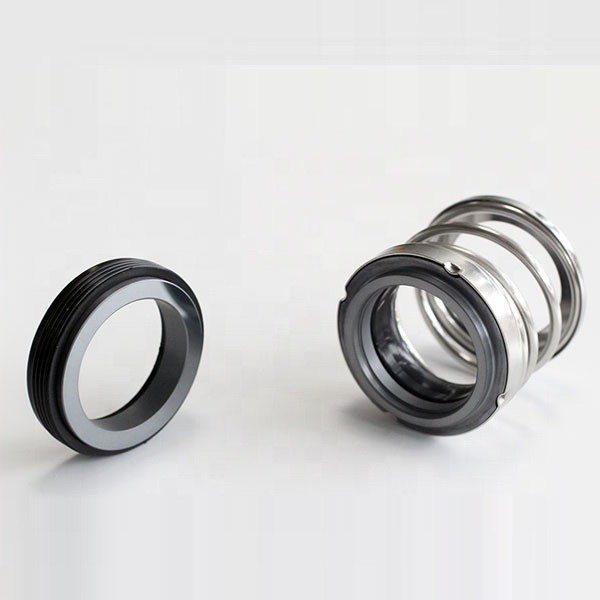

Mechanical Shaft Seal John Crane Type 21 Seal Elastomer Bellows Mechanical Seal Flowserve 110 Seal For Water Pump​ Sic Sic FKM

Operations Conditions:

1. Structure: Single End
   Pressure: Medium Pressure Mechanical Seals
   Speed: General Speed Mechanical Seal
   Temperature: General Temperature Mechanical Seal
   Performance: Wear
   Standard: DIN24960, ISO3069, GB6556
   Model NO.: BIA, Type 21, and Type 43
   Balance: Unbalanced
   Specification: Inner Diameter: 12 mm to 100 mm
2. John Crane 21 seal
3. Aesseal P04/P04T seal
4. Flowserve 110 seal
5. Temperature:-20ºC to +150ºC
6. Pressure:≤1.5bar
7. Speed:≤18m/s

Materials:

• 1. Sealing face: Graphite, Silicon carbide, Tungsten carbide, Aluminum oxide
• 2. Secondary sealing: Acrylonitrile rubber, Fluorine rubber, Ethylene propylene rubber
• 3. Metal component: Stainless steel

Performance Capabilities:

• 1. it is equivalent to
• Roten 21Aseal
• Sealol 43 CU Short seal
• Sterling212Aseal
• US Seal C seal
• BIA (also known as Type 21 or Type 43) Mechanical Seal for Clean Water Pumps, Piping Pumps and Vacuum Pumps

  Structural Features: single end, unbalanced, independent direction of rotation, rubber bellow, bellow transmission. This component has a compact structure with good compatibility, stablity and easy installation.

  Industrial Standards: DIN24960, ISO3069, GB6556

  Scopes of Application: widely used in oil and water circulation pumps, piping pumps, and vacuum pumps for industries such as sewage treatment and paper-making. This product can be an alternative to similar products from EG&G SEAL OL.

Hefei supseals international trade Co., Ltd is engaged in the design, manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, cartridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Agitator Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal, Seal Spares, Horizontal Centrifugal Pump, PTFE Bellow Seal, Single Coil Spring Seal and many more. In addition to these we are also offering a wide range of Seal Components and Seals, which is extensively used in distilleries industries, textile industries and for various water applications. These are available with various material finishes such as carbon, TC ceramic, silicon carbide.

Hefei supseals international trade Co., Ltd is one of the leading manufacturer of the mechanical seals for various pumps, compressors, agitators, reactors and mixers etc. We design & manufacture mechanical seals according to the international standards and also the products are designed using computerised equipments to avoid the errors.

Hefei supseals international trade Co., Ltd is committed to continious improvement of its products and services to achieve customer′s satisfaction.

Hefei supseals international trade Co., Ltd has been catering services to Chemical, Petrochemical, Agrochemical, Fertilizers, Pharmaceuticals Industries and many other industries.

We believe that " The Secret of Success is Consistency of Purpose"

Factory

Certifications

Workshop

Quality:

Warehouse

Team Work:

We work together as a TEAM, encourages and support each other to achieve common and individual goals, and also respect the individual differences.

Performance:

Based on our customers feedback we are able to design customise & manufacture mechanical seals which performed equally well to the other expensive mechanical seals brand.

Product Range:

We have the vide range of products in mechanical seals which are highly efficient for all types of Centrifugal pumps, Compressors, Agitators, Reactors and Mixers etc. We also have the Equivalent Range of complete mechanical seals and spares for the various design like John Crane, EagleBurgmann, Flowserve, Flexi Box and Leakproof etc.

Services:

We provide service to our customers by taking necessary physical dimension of the equipments at the customer′s site and we also provide installation and running trial service. We also maintain inventory for mechanical seals & spares for various customers manufacture at our factory to meet the customers requirenment on time. We also undertake the repairs and maintainance contracts of any third party mechanical seals.
