    Single Balanced Metal Bellow Mechanical Seal Non Wetted

    Ask Lasest Price
    Brand Name : JR
    Model Number : Fluiten TZKA mechanical seal
    Certification : iso9001
    Price : Negotiated
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 10000000PC/Month
    Delivery Time : 10DAYS
    • Product Details
    • Company Profile

    Single Balanced Metal Bellow Mechanical Seal Non Wetted

    Mechanical Seal Single Seal Balanced Non Wetted Fluiten TZKA Mechanical Seal


    Operational Conditions:


    1. Type:Multi Spring Seal
    2. Replacement:Fluiten TZKA
    3. Temperature:-20℃ to +180℃
    4. Pressure:≤2.5Mpa
    5. Speed:≤15m/s

    Materials:

    • Seal face : Aluminium Oxide (05).
    • Mating face : Carbon risin (06).
    • Secondary seals : NBR(A), FKM(C).
    • Combination : 0506A15.

    Performance Capabilities

    Temperature
    -30℃ to 200℃, dependent on the elastomer
    Pressure
    Up to 10 bar
    Speed
    Up to 15 m/s
    End play/axial float allowance
    ±0.1mm
    Size
    12mm to 75mm
    Brand
    JR
    Face
    Ceramic, SiC, TC
    Seat
    Carbon, SiC, TC
    Elastomer
    NBR, EPDM, etc.
    Spring
    SS304, SS316
    Metal parts
    SS304, SS316
    Packing
    1.From 10mm to 20mm is packed in plastic sheets grouply and M box.
    2.From 21mm to 40mm is wrapped in plastic 3.paper individually then grouply in M box.
    3.Individual packing ,1 pc in 1 small box is available as well with cost of packing added.
    • TZKA is a single component seal, with a type A pinned stationary seat, pressure balanced, with an integral shaft sleeve, it can be fitted on parallel shafts/sleeves and it allows rotation in two directions.

      It is fitted with multiple springs located outside of the product, whichmakes it suitable for use in particularly dirty of viscous liquids.
      Three substational, internal, drive lugs ensure high performance even in the case of misalignment, vibration and cavitation

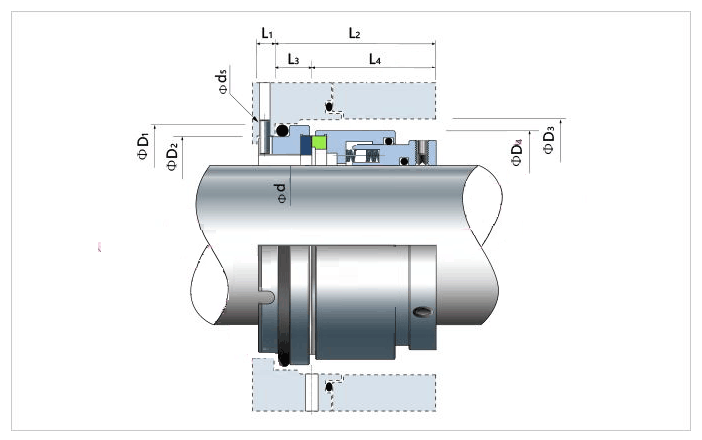

    d

    (mm)

    d5
    D1
    D2
    D3
    D4
    L1
    L2
    L3
    L4
    35
    4
    61
    54.0
    61
    58
    9
    55.0
    11
    44.0
    38
    4
    63
    56.0
    63
    60
    9
    55.0
    11
    44.0
    40
    4
    66
    59.0
    66
    63
    9
    56.0
    11
    45.0
    43
    4
    70
    62.0
    70
    65
    9
    58.0
    13
    45.0
    45
    4
    73
    65.0
    73
    69
    9
    58.0
    13
    45.0
    48
    4
    75
    67.0
    75
    71
    9
    58.0
    13
    45.0
    50
    4
    78
    70.0
    78
    74
    9
    58.0
    13
    45.0
    53
    4
    85
    77.0
    85
    82
    9
    58.0
    13
    45.0
    55
    4
    85
    77.0
    85
    82
    9
    58.0
    13
    45.0
    58
    4
    92
    83.0
    92
    87
    9
    66.5
    15
    51.5
    60
    4
    92
    83.0
    92
    87
    9
    66.5
    15
    51.5
    63
    4
    97
    88.0
    97
    92
    9
    69.5
    15
    54.5
    65
    4
    97
    88.0
    97
    92
    9
    69.5
    15
    54.5
    68
    4
    105
    95.0
    105
    100
    9
    70.0
    15.5
    54.5
    70
    4
    105
    95.0
    105
    100
    9
    70.0
    15.5
    54.5
    75
    4
    110
    100.0
    110
    105
    9
    80.0
    15.5
    64.5
    80
    4
    115
    105.0
    115
    110
    9
    80.0
    15.5
    64.5
    85
    4
    120
    110.0
    120
    115
    9
    80.0
    15.5
    64.5
    90
    4
    125
    115.0
    125
    120
    9
    80.0
    15.5
    64.5
    95
    4
    129
    120.5
    130
    125
    12
    83.5
    19
    64.5
    100
    4
    134
    125.5
    135
    130
    12
    83.5
    19
    64.5
    105
    4
    139
    130.5
    140
    135
    12
    90.5
    19
    71.5
    110
    4
    144
    135.5
    145
    140
    12
    90.5
    19
    71.5
    115
    4
    149
    140.5
    150
    145
    12
    90.5
    19
    71.5
    120
    4
    154
    145.5
    155
    150
    12
    90.5
    19
    71.5
    125
    4
    161
    149.5
    161
    155
    12
    93.5
    22
    71.5
    130
    4
    166
    154.5
    166
    160
    13
    93.5
    22
    71.5
    140
    5
    183
    171.5
    85
    180
    13
    104.0
    26
    78.0
    150
    5
    193
    181.5
    196
    190
    13
    104.0
    26
    78.0
    160
    5
    203
    191.5
    208
    200
    13
    104.0
    26
    78.0
    170
    5
    213
    201.5
    218
    210
    13
    104.0
    26
    78.0
    180
    5
    223
    211.5
    228
    220
    13
    104.0
    26
    78.0
    190
    5
    233
    221.5
    238
    230
    13
    104.0
    26
    78.0
    200
    5
    243
    231.5
    248
    240
    13
    104.0
    26
    78.0

    We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,


    All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

    Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


    At the meantime, we could manufacture seals according to your sample or drawing, and design as your request
