Brand Name : | JR |
Model Number : | RBSIC/SSIC 1 |
Certification : | iso9001 |
Price : | Negotiated |
Payment Terms : | T/T, Western Union, L/C |
Supply Ability : | 100000PC/Month |
Delivery Time : | 20-30DAYS |
Description:
Silicon Carbide Ceramic has excellent mechanical strength and
hardness, small creep deformation, good oxidation resistance, good
corrosion resistance and good wear resistance, it is an ideal
choice for high temperature engineering materials. Due to the
outstanding properties, Silicon Carbide Ceramic is also recognized
as a mechanical sealing material better than metals, tungsten
carbide, al2o3 ceramics etc. Moreover, it also has advantages of
self-lubricating properties and low friction coefficient.
According to the different manufacturing methods, the materials
below are avaible:
Sintered Silicon Carbide (SSiC)
Reaction Bonded Silicon Carbide (SiSiC)
✔High strength in high tempperature
✔High-temperature oxidation resistance
✔Excellent wear resistance
✔Low thermal expansion and high thermal conductivity
✔Excellent thermal shock resistance
✔High Hardness
✔Outstanding corrosion resistance

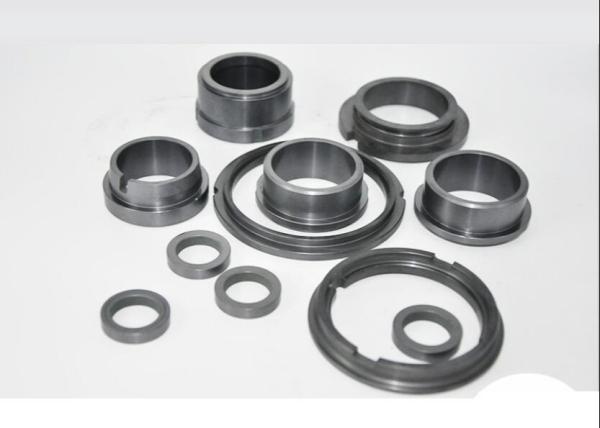

✔Mechanial seal rings
✔Balls, seats, liners for valve
✔High Temperature kiln furniture
✔Heat exchangers
✔Fixed and moving turbine components
✔Components for burners
✔Ceramic bearings
Performance Capabilities
Item | Unit | SiC | SSiC |
Purity | % | ≥90 | ≥98 |
Density | G/cm3 | 3.05 | 3.1 |
Shore Hardness | HS | 110-125 | 120-130 |
Elastic Modulus | MPa | 4.12*105 | 4.10*10s |
Poisson Ratio | 0.15 | 0.16 | |
Tensile Strength | MPa | 2.75*102 | 2.8*102 |
Bending Strength | MPa | 4.41*102 | 4.9*102 |
Compression Strength | MPa | 2.94*103 | 3.0*102 |
Thermal Conductivity | W/m.k | 141 | 147 |
Coefficient of Thermal Expansion | I/℃ | 4.3*10-6 | 4.0*10-6 |
Heat Resistance | 1600C | 165CTC | |
Tolerance | Mm | -0.02——+0.02 | -0.02——+0.02 |
Acid Resistance | 5 times higher than the usual TC | Resist al c |
We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,
All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA
Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.
At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade
service.
Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.
Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to
Ningbo or Shanghai airport directly. All our clients, from home or
abroad, are warmly welcome to visit us!
Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to
quality controlling from the very beginning to the very end. Our
factory has gained ISO9001 authentication.
Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.
Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by
paypal or by T/T. And by T/T at sight for large amount of the
order.
Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.
Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe
pumps, Compound & homogeneous pumps, Homogeneous & emulsification
pumps and so on
![]() |
