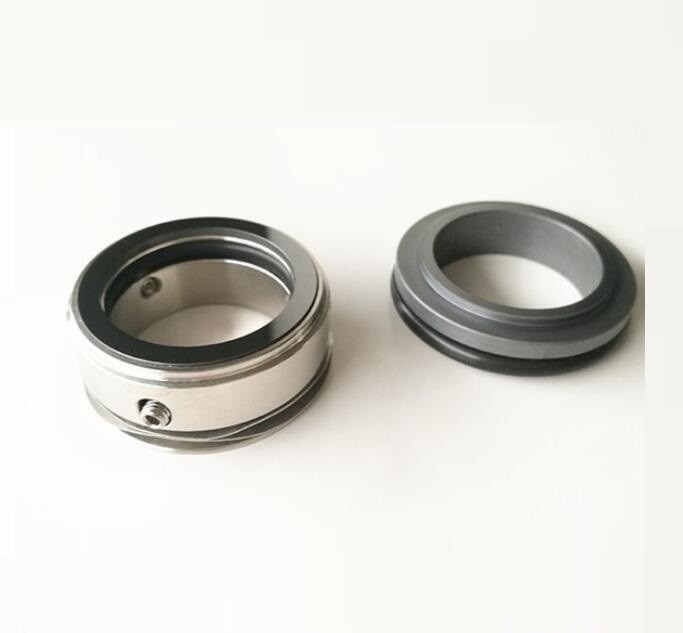

Mechanical Seal Wave Spring 68 Industrial Oil Seals Pressure Less 0.8MPa

Hefei Supseals International Trade Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Mechanical Seal Wave Spring 68 Industrial Oil Seals Pressure Less 0.8MPa from wholesalers

    Buy cheap Mechanical Seal Wave Spring 68 Industrial Oil Seals Pressure Less 0.8MPa from wholesalers
    • Buy cheap Mechanical Seal Wave Spring 68 Industrial Oil Seals Pressure Less 0.8MPa from wholesalers
    • Buy cheap Mechanical Seal Wave Spring 68 Industrial Oil Seals Pressure Less 0.8MPa from wholesalers
    • Buy cheap Mechanical Seal Wave Spring 68 Industrial Oil Seals Pressure Less 0.8MPa from wholesalers
    • Buy cheap Mechanical Seal Wave Spring 68 Industrial Oil Seals Pressure Less 0.8MPa from wholesalers

    Mechanical Seal Wave Spring 68 Industrial Oil Seals Pressure Less 0.8MPa

    Ask Lasest Price
    Brand Name : JR
    Model Number : 68
    Certification : ISO9001
    Price : Negotiated
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100000PC/Month
    Delivery Time : 20-30DAYS
    • Product Details
    • Company Profile

    Mechanical Seal Wave Spring 68 Industrial Oil Seals Pressure Less 0.8MPa

    Mechanical Seal Wave Spring Seal 68 Industrial Shaft Seals For John Crane 80 Flowserve 168 Seal Latty T510

    Operational Conditions:

    1. Wave spring mechanical seal
    2. Mediums: Water, oil, weak acid, weak alkali, etc.
    3. Temperature: -20°C~200°C
    4. Pressure: ≤0.8MPa
    5. Speed: ≤ 15m/Sec

    Materials:

    • Stationary Ring: Ceramic, Silicon Carbide, TC
    • Rotary Ring: Carbon, Silicon Carbide
    • Secondary Seal: NBR, EPDM, FKM, PTFE
    • Spring and Metal Parts: Steel

    Performance Capabilities

    Aesseal W01 seal 68 mechanical seal rotary seal mixer seal
    Operational Condtions
    Size
    Material
    Temperature:
    -40℃ to 200℃ dependent on the elastomer
    15.8mm to 75mm
    Face: Carbon, SiC, TC
    Pressure:Up to 25 bar
    Seat: Ceramic, SiC, TC
    Speed:Up to 20 m/s
    Elastomer:NBR, EPDM, FKM
    End Play /axial float Allowance:±1.0mm
    Other Metal ss304 ss316
    • 1..it is equivalent to
    • Roten 7K/Uniten 7K mechanical seal
    • John Crane 80 (DF/ FP) seal
    • Aesseal W01 seal
    • Flowserve 168 seal
    • Latty T510
    • Roplan 800/ 850 seal
    • Sterling 280 seal
    • 2.Our seals can replace the original seals.

    Mechanical Seal Wave Spring 68 Industrial Oil Seals Pressure Less 0.8MPaMechanical Seal Wave Spring 68 Industrial Oil Seals Pressure Less 0.8MPa

    We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

    All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

    Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


    At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.


    Question 1: Are you a factory or a trade company?
    Answer: We are a factory and have our top sales for the trade service.


    Question 2: Can I try to get a SAMPLE before the order?
    Answer: Sure. You can ask for the samples. Usually they're free.


    Question 3: Where is your factory located? How can I visit there?
    Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


    Question 4: How does your factory do regarding quality control?
    Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.


    Question 5: How about the lead time?
    Answer: Within10-20 days after getting the prepayment.


    Question 6: How can we pay?
    Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.


    Question 7: If OEM available?
    Answer: Yes, we provide all of our products OEM /ODM service.


    Question 8: If I can buy pumps or pump parts from your company?
    Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
