    FBD Elastomer Bellows Industrial Mechanical Seals Single Spring For Sewage Pumps

    Ask Lasest Price
    Brand Name : JR
    Model Number : FBD
    Certification : ISO9001
    Price : Negotiated
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100000PC/Month
    Delivery Time : 20-30DAYS
    • Product Details
    • Company Profile

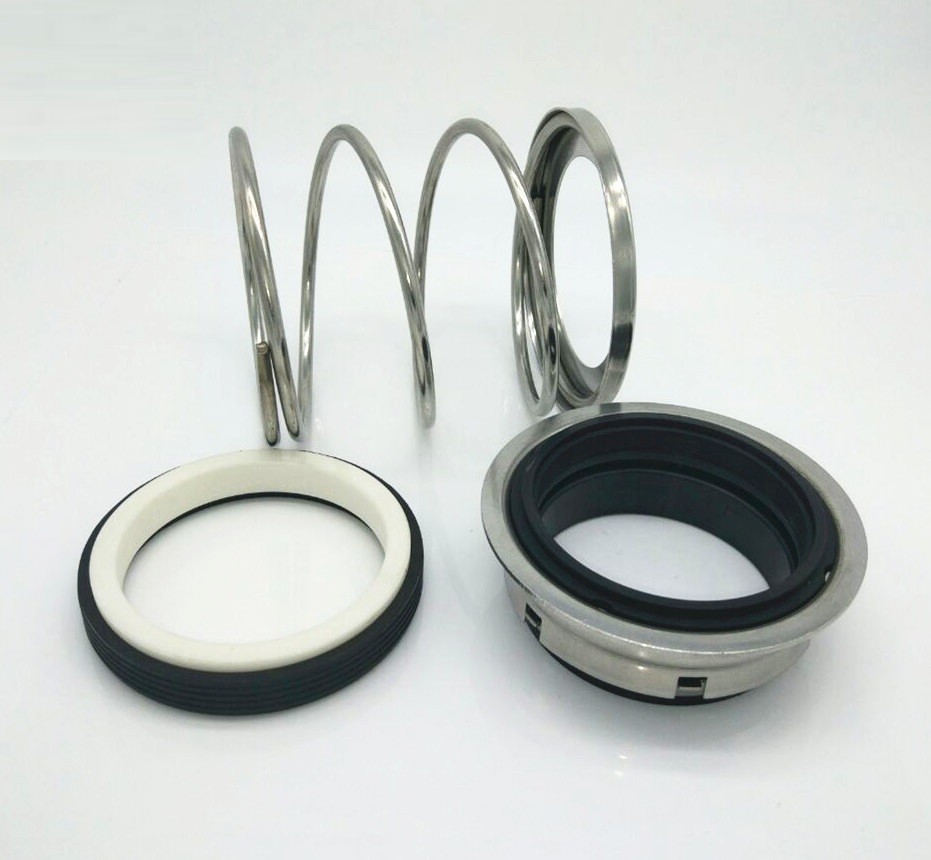

    FBD Elastomer Bellows Industrial Mechanical Seals Single Spring For Sewage Pumps

    Mechanical Seal John Crane FBD Elastomer Bellows Single Spring Seal For Clean Water And Sewage Pumps

    Operational Conditions:

    1. FBD Spring Inbuilt Rubber Bellows Pump Water Mechanical Seal
    2. Used in differend pumps,mixers and other rotating equipments which apply to oil,water and other weak corrosive solutions.Materials should be selected according to operation condition
    3. Temperature: -20ºC to +180ºC
    4. Pressure: ≤2.5MPa
    5. Speed: ≤15m/s

    Materials:

    • Rotating face: silicon carbide,graphite,tungsten carbide.
    • Stationary face: ceramic,silicon carbide, tungsten carbide
    • Elastomers: NBR,EPDM,FKM
    • Seat metal: SS304,316

    Performance Capabilities

    FBD mechanical seal rotary seal mixer seal
    Operational Condtions
    Size
    Material
    Temperature:
    -40℃ to 200℃ dependent on the elastomer
    16mm to 120mm, 5/8" to 2.5"
    Face: Carbon, SiC, TC
    Pressure:Up to 25 bar
    Seat: Ceramic, SiC, TC
    Speed:Up to 20 m/s
    Elastomer:NBR, EPDM, FKM
    End Play /axial float Allowance:±1.0mm
    Other Metal Parts : SS304, SS316
    • 1.it is equivalent to
    • John crane type 2
    • 2.Our seals can replace the original seals.
    • 3.If it is not the one you need ,you can pass us your drawing ,material,shaft size for quotation.

    MdelD1D3D4D7D12LL3L4L5
    FBD-16163437305332581.5
    FBD-181836.840325332582
    FBD-202038.842345332582
    FBD-222241.545365332582
    FBD-252544.848395342682
    FBD-282848.552435342682
    FBD-30305255485342682
    FBD-353557605354030102
    FBD-404067705854434102
    FBD-454573766354636102
    FBD-505079816885141102.5
    FBD-55558487385341122.5
    FBD-606090957985341122.5
    FBD-656598.51048686149122.5
    FBD-7070103.51099186452122.5
    FBD-7575110.51169686452122.5
    FBD-8080120125105117056143
    FBD-8585125130110117056143
    FBD-9090132137115117056143
    FBD-959513712120117056143
    FBD-100100144149125117662143

    FBD Elastomer Bellows Industrial Mechanical Seals Single Spring For Sewage PumpsFBD Elastomer Bellows Industrial Mechanical Seals Single Spring For Sewage Pumps

    We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

    All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

    Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


    At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.


    Question 1: Are you a factory or a trade company?
    Answer: We are a factory and have our top sales for the trade service.


    Question 2: Can I try to get a SAMPLE before the order?
    Answer: Sure. You can ask for the samples. Usually they're free.


    Question 3: Where is your factory located? How can I visit there?
    Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


    Question 4: How does your factory do regarding quality control?
    Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.


    Question 5: How about the lead time?
    Answer: Within10-20 days after getting the prepayment.


    Question 6: How can we pay?
    Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.


    Question 7: If OEM available?
    Answer: Yes, we provide all of our products OEM /ODM service.


    Question 8: If I can buy pumps or pump parts from your company?
    Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
