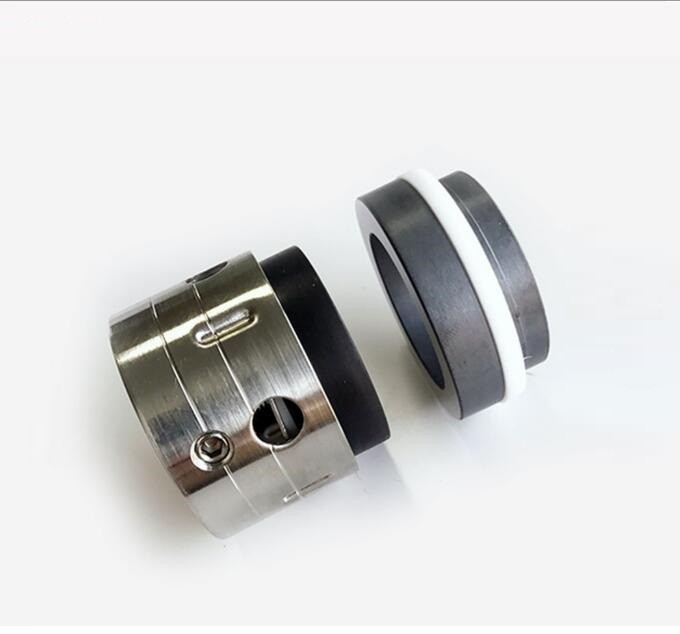

    Mechanical Seal M7N Water Pump Shaft Seal Wave Spring Seal

    Ask Lasest Price
    Brand Name : JR
    Model Number : M7N
    Certification : ISO9001
    Price : Negotiated
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100000PC/Month
    Delivery Time : 20-30DAYS
    • Product Details
    • Company Profile

    Mechanical Seal M7N Water Pump Shaft Seal Wave Spring Seal

    Burgmann Mechanical Seal Burgmann M7n M74 Wave Spring Seal For Water Pump Shaft Seal


    Operational Conditions:

    1. Eagle Burgmann Mechanical Seal M7n for Industrial Pump
    2. Replacement seals eagle burgmann M7N
    3. Temperature: -20ºC to +180ºC
    4. Pressure: ≤2.5MPa
    5. Speed: ≤15m/s

    Materials:

    • Stationary Ring: Ceramic, Silicon Carbide, TC
    • Rotary Ring: Carbon, Silicon Carbide
    • Secondary Seal: NBR, EPDM, FKM, PTFE
    • Spring and Metal Parts: Steel
    • 3. Seat Type:
    • 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids


    Performance Capabilities

    M7N mechanical seal
    Operational Condtions
    Size
    Material
    Temperature:
    -40℃ to 200℃ dependent on the elastomer
    14mm to 100mm,
    Face: Carbon, SiC, TC
    Pressure:Up to 25 bar
    Seat: Ceramic, SiC, TC
    Speed:Up to 20 m/s
    Elastomer:NBR, EPDM, FKM
    End Play /axial float Allowance:±1.0mm

    Other Metal Part:SS304 SS316

    • Wave Spring, O-ring pusher construction
    • Transmission by Pin and groove,independent of direction of rotation .
    • Solid seal faces material are easily interchangeable. Good heat dissipation
    • Low risk of clogging in solids content or viscous liquids
    • Can meet two standard dimensions when change in stationary seat


    Mechanical Seal M7N Water Pump Shaft Seal Wave Spring SealMechanical Seal M7N Water Pump Shaft Seal Wave Spring SealMechanical Seal M7N Water Pump Shaft Seal Wave Spring SealMechanical Seal M7N Water Pump Shaft Seal Wave Spring Seal

    We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,


    All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

    Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


    At the meantime, we could manufacture seals according to your sample or drawing, and design as your request
