    Mechanical Seal For Fristam FDS Pump PN.0782525001 BCH-FDS-060-YYH071/C8H77

    Ask Lasest Price
    Brand Name : JR
    Model Number : Fristam Art. No. 0782515001 GLRD FDS2
    Certification : ISO9001
    Price : Negotiated
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100000PC/Month
    Delivery Time : 20-30DAYS
    • Product Details
    • Company Profile

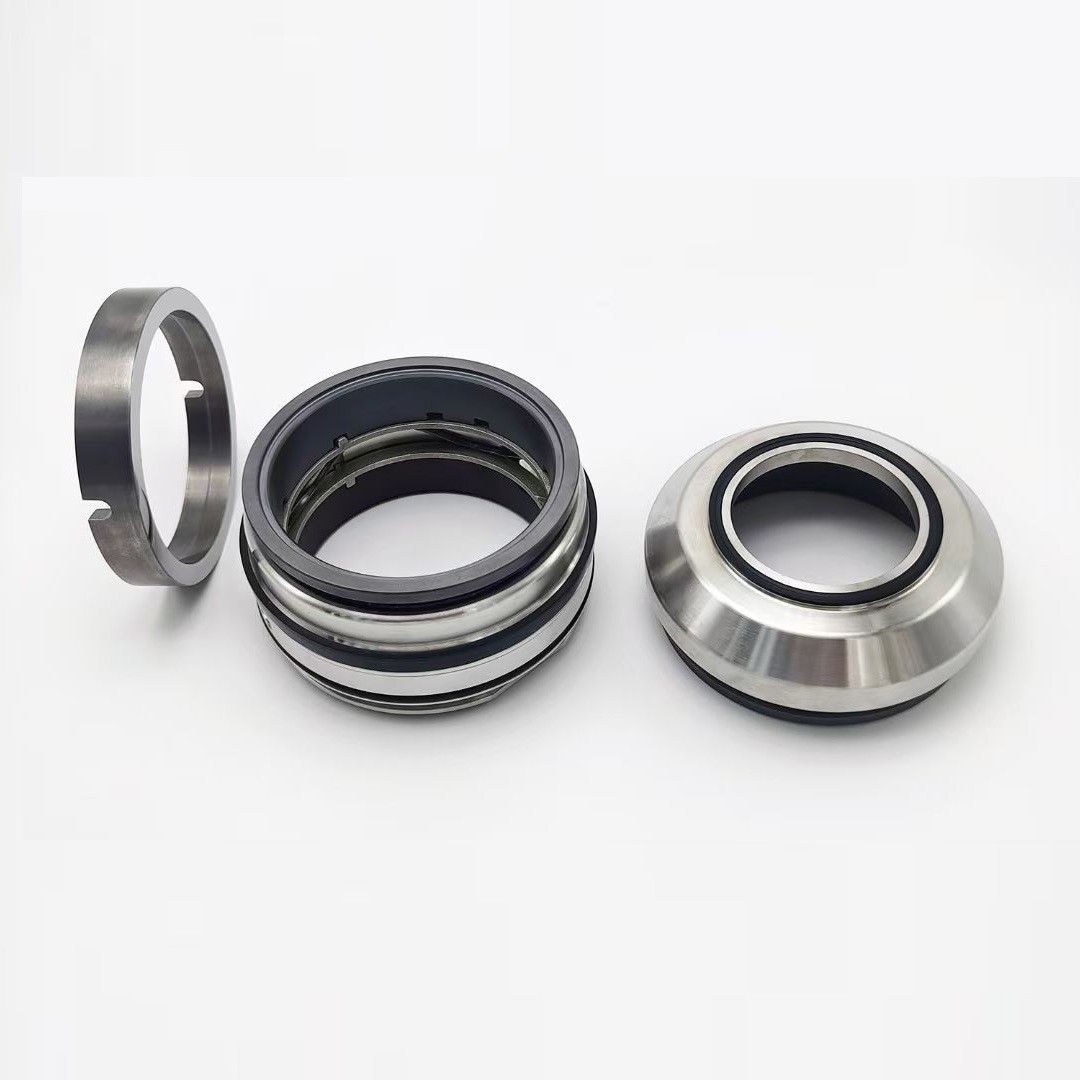

    Mechanical Seal For Fristam FDS Pump PN.0782525001 BCH-FDS-060-YYH071/C8H77

    Mechanical Seal Fristam BCH-060 For Art. No. 0782525001 Fristam Fds Double Screw Pump

    Operational Conditions:

    1. Mechanical Seal for Fristam Pump
      Model: FDS 3-4
      Serial No: 5730750207
      Job No: P-2010810
      Media: Vegetable Oil

    2. Wave sprung grub screwed 'Thin Cross Section' short working length mechanical seal.

      Available in Food Grade materials as standard (with FDA compliant materials).

    3. Wave spring mechanical seal

    4. Mediums: Water, oil, weak acid, weak alkali, etc.
    5. Temperature: -20°C~200°C
    6. Pressure: ≤0.8MPa
    7. Speed: ≤ 15m/Sec

    Materials:

    • Stationary Ring: Ceramic, Silicon Carbide, TC
    • Rotary Ring: Carbon, Silicon Carbide
    • Secondary Seal: NBR, EPDM, FKM, PTFE
    • Spring and Metal Parts: Steel

    Performance Capabilities

    • PN.0782525001 BCH-FDS-060-YYH071/C8H77
      PN:0782525001 Double Component Seal
      Drw No:17241-90
      Shaft Dia.: 60mm
      Seal face, Inboard: SIC(Y)-SIC(Y);Seal faces,outboard:Carbon-Tc;Elastomers,Inboard:HNBR/FDA;
      Elasters,Outboard:HNBR/FDA; Spring:17-7PH;Steel,Inboard:EN 1.4404(AISI316), Steel,Outboard:EN1.4404(AISI316)


    Mechanical Seal For Fristam FDS Pump PN.0782525001 BCH-FDS-060-YYH071/C8H77Mechanical Seal For Fristam FDS Pump PN.0782525001 BCH-FDS-060-YYH071/C8H77Mechanical Seal For Fristam FDS Pump PN.0782525001 BCH-FDS-060-YYH071/C8H77


    We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

    All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

    Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


    At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.


    Question 1: Are you a factory or a trade company?
    Answer: We are a factory and have our top sales for the trade service.


    Question 2: Can I try to get a SAMPLE before the order?
    Answer: Sure. You can ask for the samples. Usually they're free.


    Question 3: Where is your factory located? How can I visit there?
    Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


    Question 4: How does your factory do regarding quality control?
    Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.


    Question 5: How about the lead time?
    Answer: Within10-20 days after getting the prepayment.


    Question 6: How can we pay?
    Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.


    Question 7: If OEM available?
    Answer: Yes, we provide all of our products OEM /ODM service.


    Question 8: If I can buy pumps or pump parts from your company?
    Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
