    Mechanical Seal Gorman Rupp Cartridge For Gorman-Rupp Pump T Series

    Ask Lasest Price
    Brand Name : JR
    Model Number : Gormann Rupp Pump
    Certification : iso9001
    Price : Negotiated
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000PC/Month
    Delivery Time : 20-30DAYS
    • Product Details
    • Company Profile

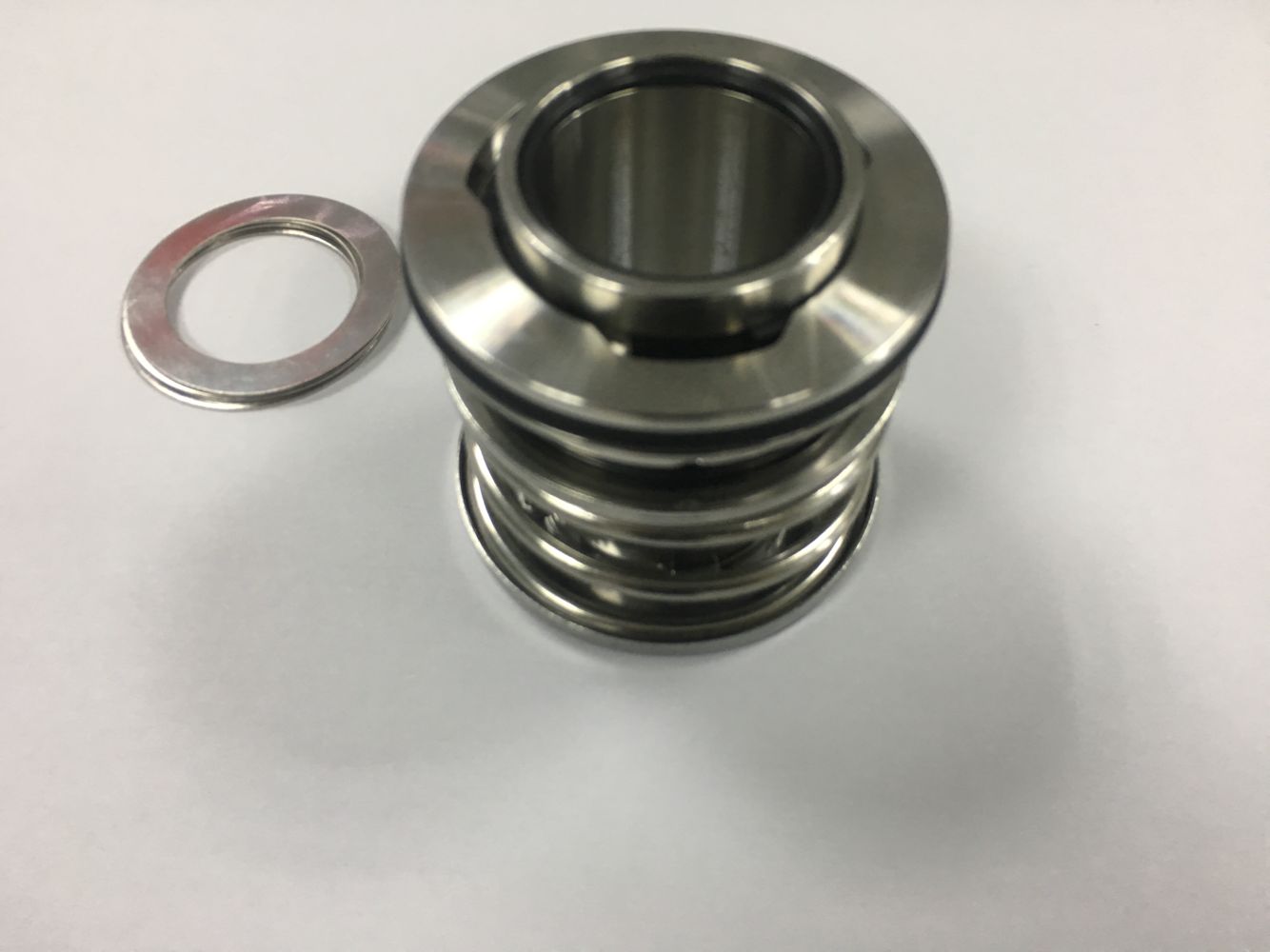

    Mechanical Seal Gorman Rupp Cartridge For Gorman-Rupp Pump T Series

    Gorman Rupp Cartridge Mechanical Seal For Self Priming Gorman Rupp T Series Pumps


    Operational Conditions:

    1. GRP is identical to Gorman Rupp pumps 46513-150/151 and 46513-153/154
      also used on Wemco Models: WSP3A, 4A, 6A, 8A, 10A.

      Description:
      Pressure: 1.2 MPa or less
      Temperature: - 30 ~ 210 ºC
      Linear Speed: 18 m/s or less
      Structure: Single End

      Pressure: High Pressure Mechanical Seals
      Speed: General Speed Mechanical Seal
      Temperature: High Temperature Mechanical Seal
      Performance: High Pressure
      Standard: Specifically Designed
      Model NO.: Gorman Rupp Model T3/T4/T6 Model T8 Model T10
      Balance: Balanced
      Specification: Inner Diameter: 1.25 inch , 1.5 inch , 1.875 inch , 2.25 inch , 2.75 inch

    Materials:

    • Rotary Ring Face: SiC/TC
      Stationary Ring Face: SiC/TC
      Elastomers: FKM/EPDM/FFKM
      Springs: SS304/SS316
      Metal Parts: SS304/SS316
      These are replacement mechanical seals for Gorman-Rupp Pumps S range of Submersible Gorman-Rupp Pumps, and T range of self Priming Gorman-Rupp Pumps.
      Structural Features: single end, single spring, balanced, independent direction of rotation.
      Industrial Standards: Customized
      Scopes of Application: mainly used in Gorman-Rupp Pumps S range of Submersible Gorman-Rupp Pumps, and T range of self Priming Gorman-Rupp Pumps


    Performance Capabilities:

    Gorman Rupp pump mechanical seal Replacement for sale
    Operational Condtions
    Size
    Material
    Temperature:
    -40℃ to220℃, depend on o-ring material
    1.25 inch , 1.5 inch , 1.875 inch , 2.25 inch , 2.75 inch
    Face: TC
    Pressure: Up to25 bar
    Seat: TC
    Speed:Up to 20m/s
    Elastomer: FKM
    End Play /axial float Allowance:±1.0mm
    Other Metal Parts : SS316, hastelloy C, A
    • 1. it is identical to Gorman Rupp Cartridge Mechanical Seal For Self Priming Gorman Rupp T Series Pumps
    • 2. We strictly follow DIN24960,ISO3069, EN12756,API628 standards.
    • 3. If you pass us your pump model or your drawing ,material,shaft size for quotation,
    • We will make whatever mechanical seal you need.
    • 4.Customized products and OEM is welcomed.
    • 5. We offer Factory Price,High Quality ,Fast Delivery and Best Sevice.
    • 6.include upper and lower

    We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

    All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

    Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


    At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.


    Question 1: Are you a factory or a trade company?
    Answer: We are a factory and have our top sales for the trade service.


    Question 2: Can I try to get a SAMPLE before the order?
    Answer: Sure. You can ask for the samples. Usually they're free.


    Question 3: Where is your factory located? How can I visit there?
    Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


    Question 4: How does your factory do regarding quality control?
    Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.


    Question 5: How about the lead time?
    Answer: Within10-20 days after getting the prepayment.


    Question 6: How can we pay?
    Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.


    Question 7: If OEM available?
    Answer: Yes, we provide all of our products OEM /ODM service.


    Question 8: If I can buy pumps or pump parts from your company?
    Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
