    Mechanical Seal John Crane Seal SE1-AP-40 For Sulzer Flow Pumps

    Ask Lasest Price
    Brand Name : JR
    Model Number : SE1-AP-40 John crane mechanical seal
    Certification : iso9001
    Price : Negotiated
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000PC/Month
    Delivery Time : 20-30DAYS
    • Product Details
    • Company Profile

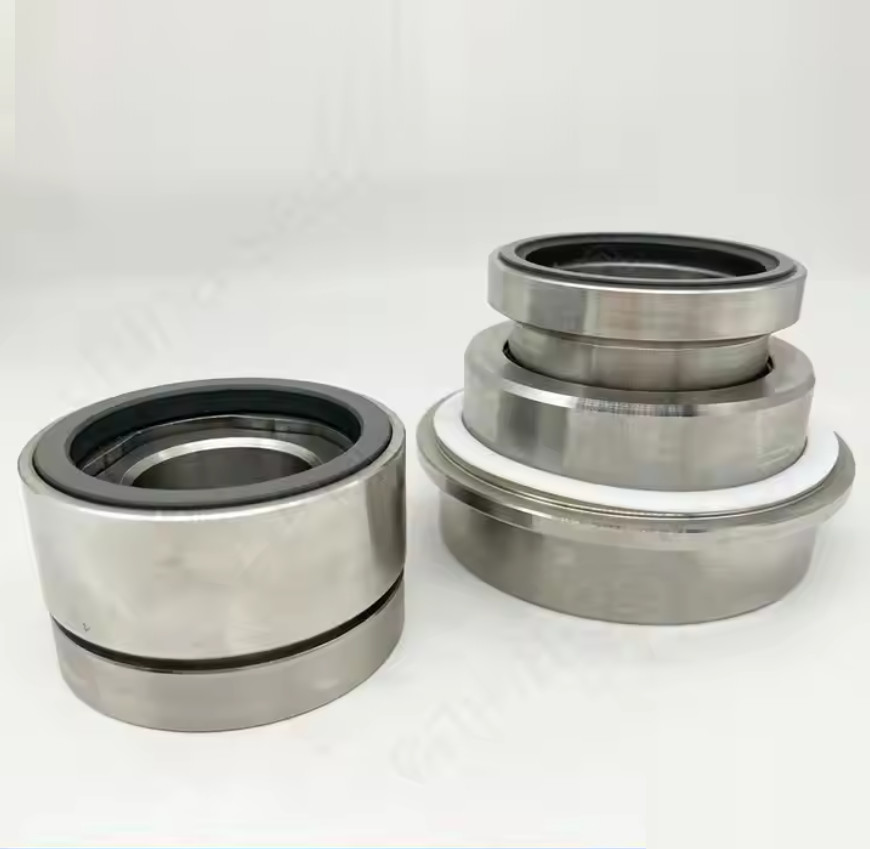

    Mechanical Seal John Crane Seal SE1-AP-40 For Sulzer Flow Pumps

    SE1-AP-40 John crane mechanical seal for Sulzer Ahlstar Pumps


    Operational Conditions:

    1. Structure: Single-End
    2. Pressure: High Pressure Mechanical Seals
    3. Speed: High Speed Mechanical Seal
    4. Temperature: High Temperature Mechanical Seal
    5. Performance: Corrosion
    6. Standard: Specific Customization
    7. Model NO.: SE1, SE1-AP and SEG
    8. Balance: Balanced
    9. Specification: Inner Diameter: 30 mm to 100 mm

    Materials:

    Rotary Ring Face: SiC/TC
    Stationary Ring Face: SiC/TC
    Elastomers: FKM/EPDM/FFKM
    Springs: SS304/SS316
    Metal Parts: SS304/SS316

    Product Detailed Description

    • SE1, SE1-AP and SEG Single End Mechanical Seal for Paper-making Equipment, Alumina Plants, Flue Gas Desulphurization, Deashing System and Slurry Pumps, Safematic Replacement Seal

      Structural Features: single end, multi springs, balanced, independent rotary direction, still structure, pin transmission. The still springs are suitable for high operating speed. The springs are separated from the sealed mediums so they will not be jammed. Piston design allows great axial shifting. The seal is separated assembled with easy installation and reliable performance. The double end versions of SE1 series is SE2 series mechanical seals.

      Industrial Standards: Specific Customization.

      Scopes of Application: mainly used in paper-making equipment, slurry pumps, pressure screens, flue gas desulphurization for chemical engineering, power plants, mining, oil refining, alumina plants, food processing, pharmacy, and paper making. This seal works as an alternative to similar products of Sulzer, working as Safematic SE1 replacement seals


    Performance Capabilities:

    mechanical seal Replacement for sale
    Operational Condtions
    Size
    Material
    Temperature:
    -40℃ to220℃, depend on o-ring material
    30-100MM
    Face: TC
    Pressure: Up to25 bar
    Seat: TC
    Speed:Up to 20m/s
    Elastomer: FKM
    End Play /axial float Allowance:±1.0mm
    Other Metal Parts : SS316, hastelloy C, A

    Mechanical Seal John Crane Seal SE1-AP-40 For Sulzer Flow PumpsMechanical Seal John Crane Seal SE1-AP-40 For Sulzer Flow PumpsMechanical Seal John Crane Seal SE1-AP-40 For Sulzer Flow PumpsMechanical Seal John Crane Seal SE1-AP-40 For Sulzer Flow Pumps


    We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

    All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

    Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


    At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.


    Question 1: Are you a factory or a trade company?
    Answer: We are a factory and have our top sales for the trade service.


    Question 2: Can I try to get a SAMPLE before the order?
    Answer: Sure. You can ask for the samples. Usually they're free.


    Question 3: Where is your factory located? How can I visit there?
    Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


    Question 4: How does your factory do regarding quality control?
    Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.


    Question 5: How about the lead time?
    Answer: Within10-20 days after getting the prepayment.


    Question 6: How can we pay?
    Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.


    Question 7: If OEM available?
    Answer: Yes, we provide all of our products OEM /ODM service.


    Question 8: If I can buy pumps or pump parts from your company?
    Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
