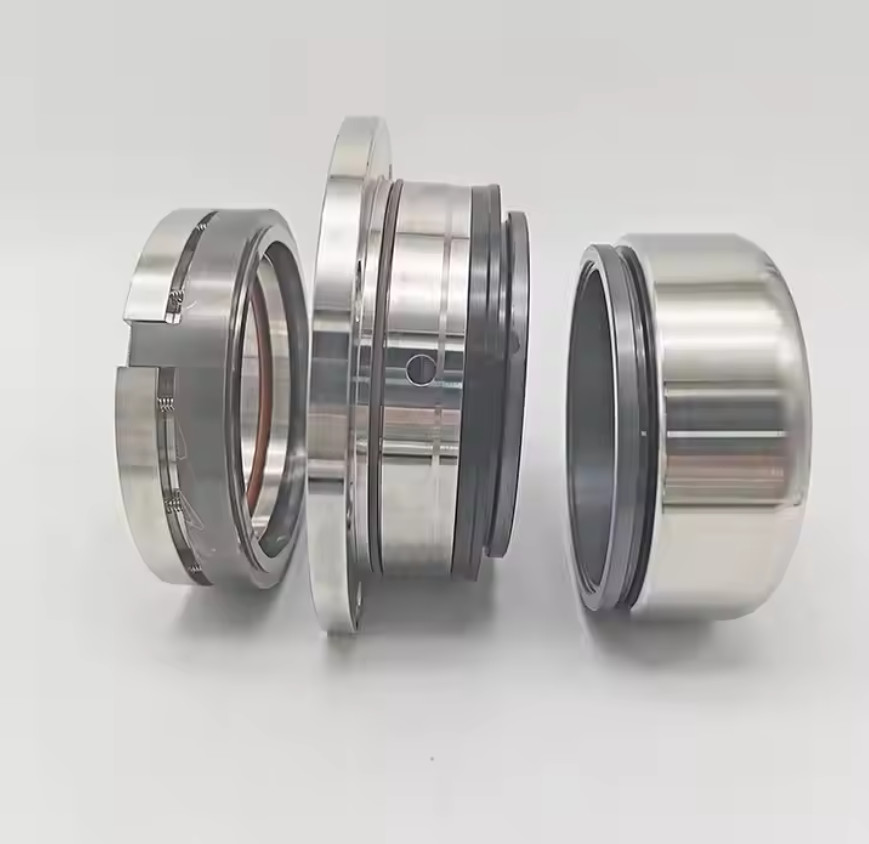

Mechanical Seal SLH-4G-4052 Double Seal 70mm For SLH-4G Pumps Model 1000/2000/3000/4000

Hefei Supseals International Trade Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Mechanical Seal SLH-4G-4052 Double Seal 70mm For SLH-4G Pumps Model 1000/2000/3000/4000 from wholesalers

    Buy cheap Mechanical Seal SLH-4G-4052 Double Seal 70mm For SLH-4G Pumps Model 1000/2000/3000/4000 from wholesalers
    • Buy cheap Mechanical Seal SLH-4G-4052 Double Seal 70mm For SLH-4G Pumps Model 1000/2000/3000/4000 from wholesalers
    • Buy cheap Mechanical Seal SLH-4G-4052 Double Seal 70mm For SLH-4G Pumps Model 1000/2000/3000/4000 from wholesalers
    • Buy cheap Mechanical Seal SLH-4G-4052 Double Seal 70mm For SLH-4G Pumps Model 1000/2000/3000/4000 from wholesalers
    • Buy cheap Mechanical Seal SLH-4G-4052 Double Seal 70mm For SLH-4G Pumps Model 1000/2000/3000/4000 from wholesalers
    • Buy cheap Mechanical Seal SLH-4G-4052 Double Seal 70mm For SLH-4G Pumps Model 1000/2000/3000/4000 from wholesalers

    Mechanical Seal SLH-4G-4052 Double Seal 70mm For SLH-4G Pumps Model 1000/2000/3000/4000

    Ask Lasest Price
    Brand Name : JR
    Model Number : SLH-4G-4052
    Certification : iso9001
    Price : Negotiated
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000PC/Month
    Delivery Time : 20-30DAYS
    • Product Details
    • Company Profile

    Mechanical Seal SLH-4G-4052 Double Seal 70mm For SLH-4G Pumps Model 1000/2000/3000/4000

    Double Mechanical Seal SLH-4G-4052 Seal 70mm For SLH-4G Pumps Model:1000/2000/3000/4000


    Operational Conditions:

    1. Burg DF-SGR Mechanical Seals For Burn SLH/SLH-4G Screw Pump
      Operations Conditions:
      Temperature: -40°C~220°C
      Pressure: ≤12Bar
      Speed: ≤ 12 m/Sec

      Materials:
      * Rotary Face: Carbon, SiC, TC
      * Stationary Seat: Seat: SiC, TC
      * O-rings: NBR, EPDM, VIT, Aflas, FEP, Kalrez, Chemraz etc.
      *
      Metal parts: SS316, hastelloy C, AM350
      Our double mechanical seal for screw pumps: 30mm, 40mm, 50mm, 55mm and 80mm.
      EDH-040-ZZH07/C8H67---part NO. S250895
      EDH-070-ZZH07/C8H67---part NO. 902235 S250933
      SLH80-040----28A274-001
      SLH125-055---28A274-001

      complete rang of mechanical seals for SLH pumps:
      EDH 30mm QQE/QBEGG SLH 50
      EDH 40mm QQE/QBEGG SLH 80
      EDH 55mm QQE/QBEGG SLH 125
      EDH 80mm QQE/QBEGG SLH 180

      complete rang of mechanical seals for SLH-4G pumps:
      EDH 30mm Q1Q1E/BW1EGG-4G SLH 4G1000
      EDH 40mm Q1Q1E/BW1EGG-4G SLH 4G2000
      EDH 50mm Q1Q1E/BW1EGG-4G SLH 4G3000
      EDH 80mm Q1Q1E/BW1EGG-4G SLH 4G4000


    Performance Capabilities:

    mechanical seal Replacement for sale
    Operational Condtions
    Size
    Material
    Temperature:
    -40℃ to220℃, depend on o-ring material
    30-100MM
    Face: TC
    Pressure: Up to25 bar
    Seat: TC
    Speed:Up to 20m/s
    Elastomer: FKM
    End Play /axial float Allowance:±1.0mm
    Other Metal Parts : SS316, hastelloy C, A

    Mechanical Seal SLH-4G-4052 Double Seal 70mm For SLH-4G Pumps Model 1000/2000/3000/4000Mechanical Seal SLH-4G-4052 Double Seal 70mm For SLH-4G Pumps Model 1000/2000/3000/4000Mechanical Seal SLH-4G-4052 Double Seal 70mm For SLH-4G Pumps Model 1000/2000/3000/4000

    We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

    All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

    Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


    At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.


    Question 1: Are you a factory or a trade company?
    Answer: We are a factory and have our top sales for the trade service.


    Question 2: Can I try to get a SAMPLE before the order?
    Answer: Sure. You can ask for the samples. Usually they're free.


    Question 3: Where is your factory located? How can I visit there?
    Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


    Question 4: How does your factory do regarding quality control?
    Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.


    Question 5: How about the lead time?
    Answer: Within10-20 days after getting the prepayment.


    Question 6: How can we pay?
    Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.


    Question 7: If OEM available?
    Answer: Yes, we provide all of our products OEM /ODM service.


    Question 8: If I can buy pumps or pump parts from your company?
    Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
