    Standard Mechanical Seal 92-53MM For AL LKH Pump

    Ask Lasest Price
    Brand Name : JR
    Model Number : 92-53MM
    Certification : iso9001
    Price : Negotiated
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000PC/Month
    Delivery Time : 20-30DAYS
    • Product Details
    • Company Profile

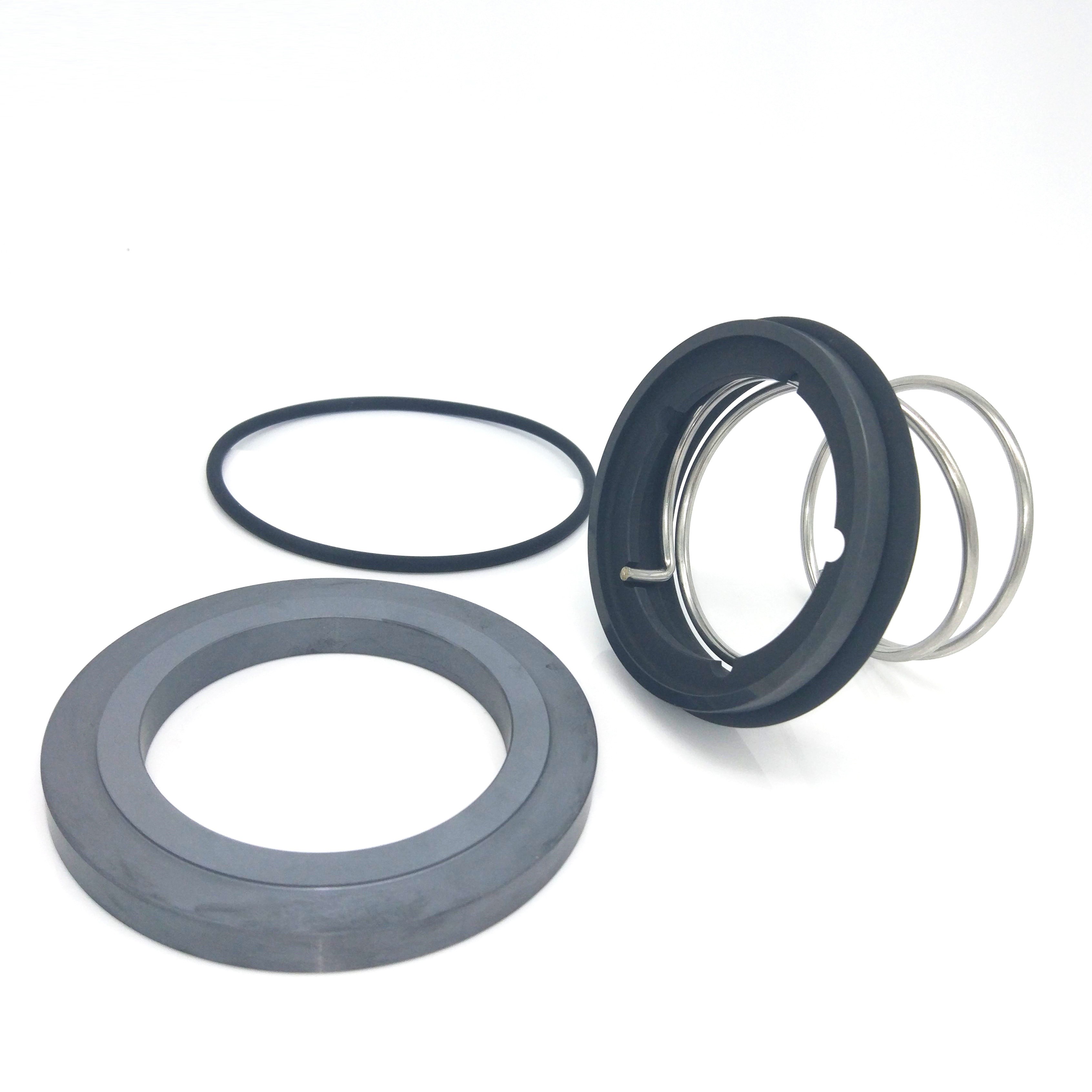

    Standard Mechanical Seal 92-53MM For AL LKH Pump

    Mechanical Seal Type 92-53mm For ALF LKH AESSEAL Replacement ALC Pump

    Description:

    1. Operational Conditions:

    1. Temperature: -20ºC to +180ºC
    2. Pressure: ≤1.2MPa
    3. Speed: ≤10m/s

    Materials:

    • Stationary Ring: Steel, Silicon Carbide, TC
    • Rotary Ring: Carbon
    • Secondary Seal: NBR, EPDM, FKM
    • Spring and Metal Parts: Steel
    • 2. Size: 53MM

    Performance Capabilities:


    Temperature
    -30℃ to 200℃, dependent on the elastomer
    Pressure
    Up to 10 bar
    Speed
    Up to 15 m/s
    End play/axial float allowance
    ±0.1mm
    Size
    53mm
    Brand
    JR
    Face
    Carbon, SiC
    Seat
    SUS304,SUS316, SIC, TC
    Elastomer
    NBR, EPDM, FKM etc.
    Spring
    SS304, SS316
    Metal parts
    SS304, SS316
    Idividual Packing
    Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

    Alf Pump Seal Mechanical Seals Type 92-53mm


    Mechanical Seal for chemical or LKH pump

    Replacement to:

    Aesseal P07 seal

    CM 1,1A,1B,1C et 1D;GM 1,1A,2,2A;EM 1C,EM 1D
    FM OS,0,1,1A,1AE,2,2A,3,3A,4 et 4A
    MR166A,166B,166E
    ME155AE,GM1,GM1A,GM2,GM2A,MA166E
    MR 185,185A,200 et 200A
    Tri-Flo(Tri-Clover) Series CL
    LHK 10,15,20,25,35,40,45,50 et 60
    LHK series pump with a flushed seal chamber
    LHK series pump with a flushed seal chamber -S
    LHK series pump with a flushed seal chamber and Double seals
    LKHI,LKHP,LKHSP,LKH 100 series multi-stage
    LHK 70&80
    ALC-pompen voorzien van type F-dichtingen,No:31460-3500
    Tri-Clover C-series
    Tri-Clover "Centrifugal 200"
    Rotor LKPL,NMOG and SRU series ,OEM "R90 Seals"
    Alf LKR-Series agitators
    Alf ALC-Series pumps
    Alf IMO pumps

    Standard Mechanical Seal 92-53MM For AL LKH PumpStandard Mechanical Seal 92-53MM For AL LKH PumpStandard Mechanical Seal 92-53MM For AL LKH Pump

    We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,


    All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

    Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


    At the meantime, we could manufacture seals according to your sample or drawing, and design as your request


    Question 1: Are you a factory or a trade company?
    Answer: We are a factory and have our top sales for the trade service.

    Question 2: Can I try to get a SAMPLE before the order?
    Answer: Sure. You can ask for the samples. Usually they're free.


    Question 3: Where is your factory located? How can I visit there?
    Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


    Question 4: How does your factory do regarding quality control?
    Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.


    Question 5: How about the lead time?
    Answer: Within10-20 days after getting the prepayment.


    Question 6: How can we pay?
    Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.


    Question 7: If OEM available?
    Answer: Yes, we provide all of our products OEM /ODM service.


    Question 8: If I can buy pumps or pump parts from your company?
    Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
