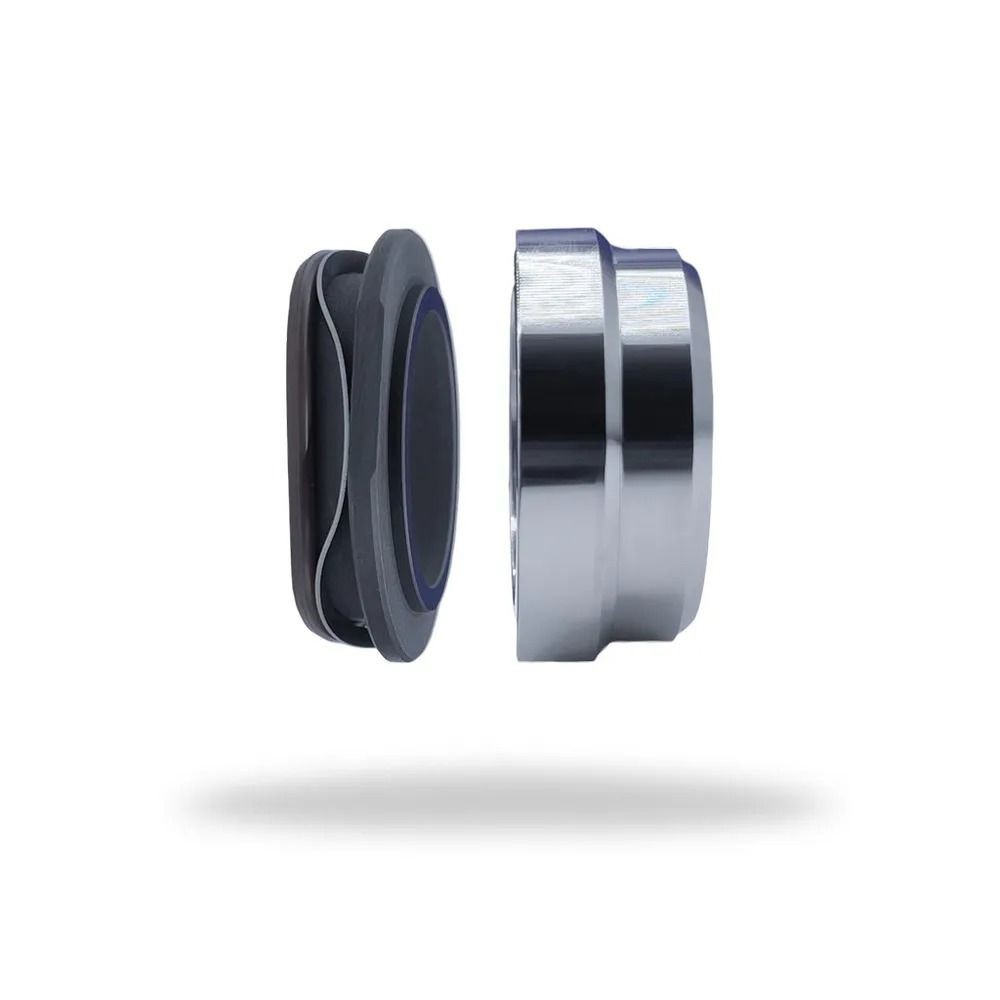

    W016U Mechanical Seal Wave Spring Seal For Alfa-Laval Sru Hyclean Pump

    Ask Lasest Price
    Brand Name : JR
    Model Number : W016U
    Certification : iso9001
    Price : Negotiated
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 10000PC/Month
    Delivery Time : 20-30DAYS
    • Product Details
    • Company Profile

    W016U Mechanical Seal Wave Spring Seal For Alfa-Laval Sru Hyclean Pump

    W016U Mechanical Seal Wave Spring Seal For Alfa-Laval Sru Hyclean Pump


    Operational Conditions:

    1. Temperature:-20---180℃
    2. Speed:15m/s
    3. Pressure:10bar
    4. Standard Size:10-80mm

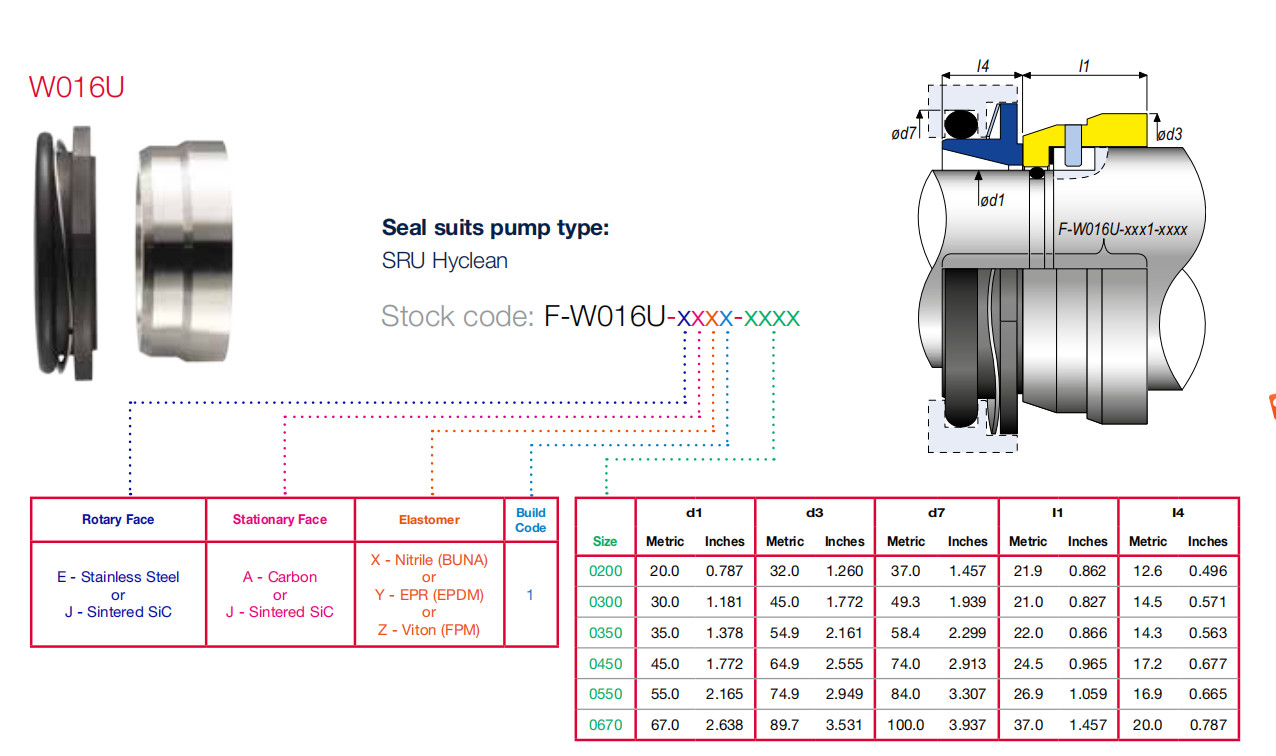

    5. W016U Mechanical Seals to suit Alf SRU Hyclean Pumps.
      6 sizes - 20mm, 30mm, 35mm, 45mm, 55mm and 67mm.

      Standard materials: Stainless Steel versus Carbon with EPDM Elastomers (Viton option available).

      Available in Food Grade materials as standard (with FDA compliant materials).

    Materials:

    • Seal ring:Car,Sic,Ssic,TC
    • Secondary seal:NBR,FKM,EPDM etc.
    • Spring and metal parts:304,316,HAST.C


    Performance Capabilities

    mechanical seal
    Operational Condtions
    Size
    Material
    Temperature:
    -40℃ to 200℃ dependent on the elastomer
    20mm, 30mm, 35mm, 45mm, 55mm and 67mm.
    Face: Carbon, SiC, TC
    Pressure:Up to 25 bar
    Seat: Ceramic, SiC, TC
    Speed:Up to 20 m/s
    Elastomer:NBR, EPDM, FKM
    End Play /axial float Allowance:±1.0mm
    Other Metal Part

    W016U Mechanical Seal Wave Spring Seal For Alfa-Laval Sru Hyclean PumpW016U Mechanical Seal Wave Spring Seal For Alfa-Laval Sru Hyclean PumpW016U Mechanical Seal Wave Spring Seal For Alfa-Laval Sru Hyclean Pump

    We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,


    All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

    Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


    At the meantime, we could manufacture seals according to your sample or drawing, and design as your request
